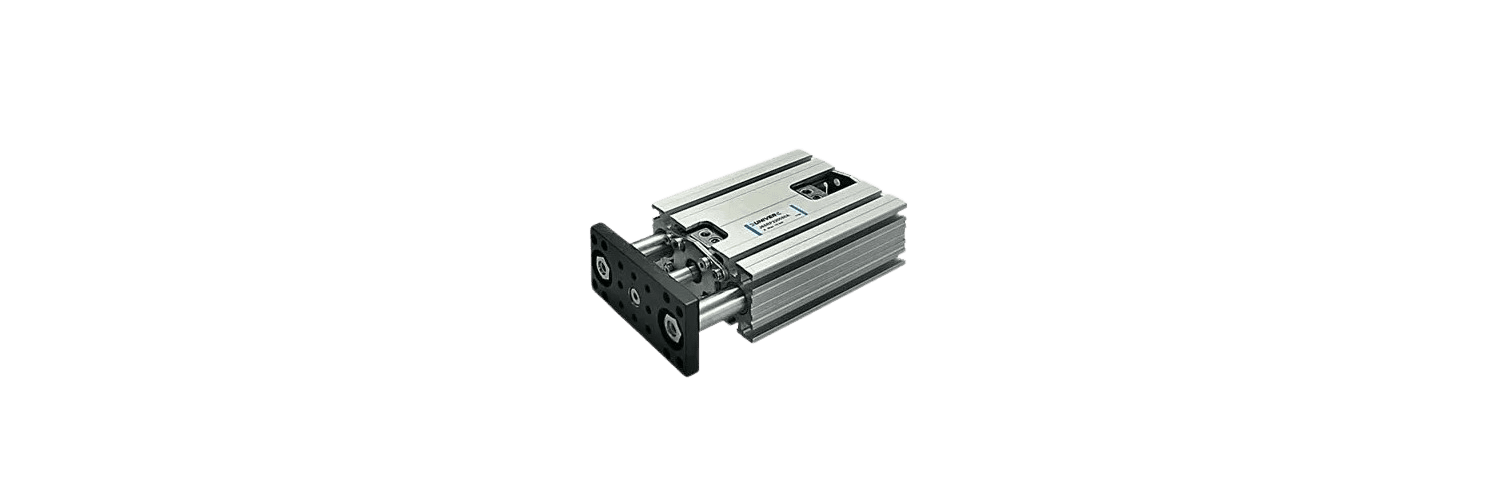

Pneumatic Slide Units Compact Cylinder RS: Precision Linear Motion for Space-Constrained Applications

Compact and reliable linear motion solutions are essential for optimising productivity and maintaining a competitive edge. At MasterMac2000, we understand the unique challenges faced by industries requiring precise and space-efficient linear actuation.

We offer a comprehensive range of slide units compact cylinder RS, specifically designed to deliver high performance, durability, and versatility in space-constrained applications.

As a leading supplier of pneumatic accessories and cylinders in Australia, MasterMac2000 is committed to providing cutting-edge solutions that empower our clients to achieve their goals.

Our slide units compact cylinder RS are engineered to provide smooth, accurate, and reliable linear motion, making them an ideal choice for a wide range of industrial applications.

Technical Specifications and Features

MasterMac2000's slide units compact cylinder RS are designed to meet the demanding requirements of industrial applications.

Material Composition

  • Cylinder Body: Anodised aluminium for excellent corrosion resistance and durability
  • Piston Rod: Stainless steel for high strength and resistance to wear
  • Seals: High-quality polyurethane for low friction and long service life
  • Bearings: Precision ball bearings for smooth and accurate motion

Size Variations

Our slide units compact cylinder RS are available in a range of sizes to suit different application requirements:

  • Bore Sizes: 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
  • Stroke Lengths: 25mm to 500mm (in 25mm increments)

Load Capacities

The load capacity depends on the bore size and stroke length:

  • 16mm Bore: Up to 100N at 6 bar
  • 25mm Bore: Up to 250N at 6 bar
  • 40mm Bore: Up to 600N at 6 bar
  • 63mm Bore: Up to 1500N at 6 bar

Configurations

Available in different configurations to suit specific application needs:

Single Rod

A single rod configuration represents a streamlined pneumatic cylinder design featuring a solitary piston rod extending from one end of the cylinder body. This configuration epitomises mechanical simplicity and space-efficient linear motion transmission.

Double Rod

Double rod configurations feature symmetrically positioned piston rods extending from both cylinder ends, providing enhanced mechanical stability and balanced force distribution.

Tandem

Two cylinders connected in series for increased force output. Tandem configurations involve connecting two pneumatic cylinders in series, creating a sophisticated mechanism for multiplying force output and extending stroke capabilities.

Multi-Position

Multiple cylinders arranged in parallel for synchronised motion. Multi-position configurations arrange multiple pneumatic cylinders in parallel, enabling sophisticated synchronised motion profiles and complex mechanical interactions.

Operational Benefits

Incorporating MasterMac2000's slide units compact cylinder RS into industrial equipment offers several advantages:

  • Compact Footprint: Space-saving design for efficient machine real estate
  • High Force Output: Delivers significant force relative to compact size
  • Precise Positioning: Ensures accurate and repeatable motion control
  • Smooth Operation: Consistent motion, even at high speeds
  • Long Service Life: Robust construction ensures lasting performance

Industrial Applications

Packaging and Labelling Machinery

Precise positioning and rapid movement of products, labels, and packaging materials. The compact size allows integration into space-constrained machine designs, with high force output ensuring reliable operation.

Assembly and Manufacturing Systems

Critical for precise and repeatable linear motion. Ideal for part placement, clamping, and joining, ensuring high accuracy in manufacturing processes.

Material Handling Equipment

Provides reliable linear actuation in conveyors and sorting systems. Compact size enables integration into tight spaces, with smooth operation for gentle material handling.

Robotics and Automation

Suited for applications requiring precise and responsive linear motion. Used for gripping, positioning, and indexing, providing speed and accuracy for high-performance automated systems.

Customised Solutions

At MasterMac2000, we recognise that every industrial application is unique. Our team of experienced engineers can design and manufacture slide units compact cylinder RS tailored to specific requirements. We offer:

  • Customised bore sizes
  • Specific stroke lengths
  • Unique configurations
  • Additional accessories (proximity sensors, cushioning, mounting brackets)

Engineering Principles

Compact and Robust Design

  • High-strength anodised aluminium cylinder body
  • Corrosion-resistant construction
  • Stainless steel piston rod for high strength and wear resistance

Precision-Machined Components

  • Precision-machined to tight tolerances
  • Honed cylinder bore for minimal friction
  • Ground and polished piston rod for precise positioning

Advanced Sealing and Bearing Technology

  • High-quality polyurethane seals
  • Capable of withstanding high pressures and temperatures
  • Precision ball bearings for smooth motion

Technical Support and Expertise

MasterMac2000 provides:

  • Comprehensive technical support
  • Expert guidance on product selection
  • Installation and commissioning assistance
  • Maintenance and repair services

Contact Us

Ready to improve your linear motion solutions? Contact MasterMac2000 today to discuss your specific requirements and discover how our slide units compact cylinder RS can optimise your industrial operations.
