Pneumatic Rotary Actuators
Pneumatic Rotary Actuators: Reliable Precision Motion Control Accessories
Pneumatic rotary actuators are sophisticated devices that convert compressed air pressure into rotational motion. These versatile components are critical in numerous industrial applications, offering precise and controlled angular movement
Key Types of Pneumatic Rotary Actuators

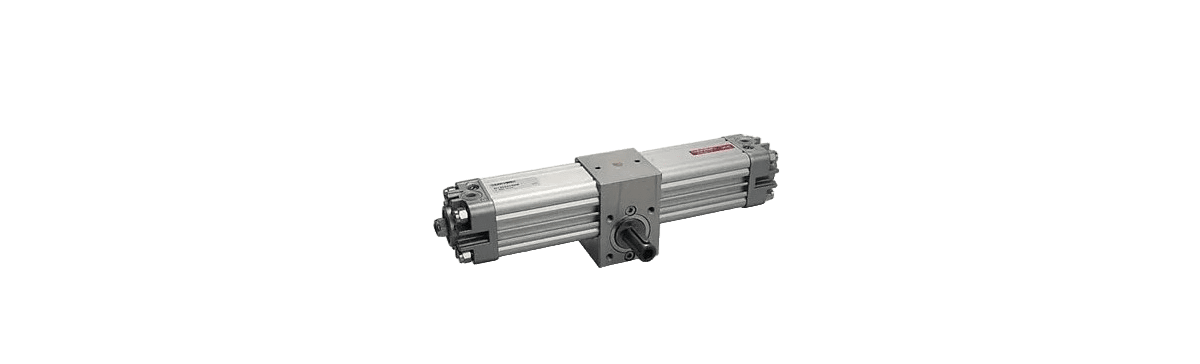

Rack and Pinion Actuators
- Mechanical Efficiency: 90-95%
- Applications: Medium duty operations
- Advantages:
- High-speed actuation
- Larger oscillation range
- Limitations: Prone to backlash due to wear
Vane-Type Actuators
- Best For: Light and medium-duty applications
- Strengths:
- Economical
- Precise positioning
- Limitations:
- Shorter operational lifespan
- Limited rotation range
Technical Specifications
Operational Characteristics
- Rotation Range: Typically 270 degrees for vane-type, up to 1000 degrees for rack and pinion
- Torque Capabilities: From a few Nm to thousands of Nm
- Power Source: Compressed air/gas
Industrial Applications
Pneumatic rotary actuators are extensively used across multiple sectors:
- Manufacturing:
- Robotic automation
- Pick and place operations
- Rotary table positioning
- Automotive Industry:
- Brake control
- Door mechanisms
- Exhaust valve operation
- Oil and Gas:
- Valve operation
- Pipeline control
- Non-sparking environments
- Food and Beverage:
- Packaging processes
- Filling and labeling machinery
Advantages of Pneumatic Rotary Actuators
- Durability: Resistant to harsh environments
- Compact Design: High force relative to size
- Cost-Effective: Lower installation and maintenance expenses
- Versatility: Adaptable across multiple industries
Rotation Range Considerations
Rotation Capabilities:
- Vane-type actuators: Typically 270 degrees maximum
- Rack and pinion actuators: Up to 1000 degrees possible
- Factors influencing rotation:
- Piston and rack gear size
- Mechanical design
- Specific application requirements
Environmental Performance Factors
Key Selection Parameters:
- IP rating for environmental protection
- Operating temperature range
- Contamination resistance
- Pressure rating
- Material compatibility
Performance Optimisation Techniques
Enhancement Technologies:
- Position Switches
- Provide end-of-stroke confirmation
- Enable precise positioning control
- Magnetic Reed Switches
- Detect actuator position
- Low-power, contactless sensing
- Linear Displacement Transducers (LDTs)
- Provide accurate position feedback
- Enable precise motion control
- Encoder Feedback Systems
- Track rotational position
- Enable advanced motion control strategies
Maintenance and Reliability Advantages
Minimal Maintenance
Pneumatic rotary actuators feature a sophisticated self-contained design that minimises mechanical complexity and reduces potential failure points. The integrated engineering ensures reduced wear components, dramatically lowering maintenance interventions and extending the operational lifespan of the device.
This innovative approach creates a clean operational mechanism that performs consistently with minimal technical oversight.
Durability Characteristics
These advanced actuators demonstrate exceptional resistance to environmental contaminants, making them ideal for challenging industrial environments ranging from dusty manufacturing floors to harsh chemical processing facilities.
Their robust construction enables a remarkably long operational lifecycle, typically ranging from 5-10 years depending on specific application conditions.
By maintaining consistent performance across varied temperature ranges, pressure conditions, and mechanical stress levels, pneumatic rotary actuators provide reliable and predictable motion control solutions for critical industrial processes.
Torque Range and Performance
Typical Torque Capabilities:
- Vane-type actuators: 2,500 to 5,000 in-lb
- Rack and pinion actuators: Up to 200,000 in-lb for pneumatic systems
- Specialised high-performance models: Exceeding 700,000 in-lb
Selection Recommendations
Critical Evaluation Factors:
- Precise torque requirements
- Rotation angle needs
- Environmental operating conditions
- Specific application demands
- Required positioning accuracy
- Budget constraints
By systematically evaluating these technical parameters, engineers can select the most appropriate pneumatic rotary actuator for their specific application requirements.
Why Choose MasterMac2000
MasterMac2000 stands out as a trusted supplier for pneumatic accessories across Australia, catering to the unique needs of various industries. Here’s why businesses consistently turn to MasterMac2000:
- Proven Expertise in Pneumatics
With years of experience in the field, MasterMac2000 understands the intricate demands of Australian industries. Their in-depth knowledge ensures that customers receive products that meet both quality and compliance standards. - Unwavering Commitment to Quality
Each product undergoes rigorous testing to ensure durability and performance. By adhering to Australian regulations, MasterMac2000 guarantees reliability, offering clients peace of mind in every purchase. - Comprehensive Product Range
MasterMac2000 provides a wide selection of pneumatic accessories designed for diverse applications. From industrial manufacturing to specialised operations, their catalogue offers solutions tailored to various operational needs. - Customer-Centric Support
Beyond delivering top-notch products, MasterMac2000 prioritises customer satisfaction. Their team is readily available to assist with product selection, technical queries, and post-sale support, ensuring seamless experiences for clients. - Efficiency and Availability
With a well-established supply chain, MasterMac2000 ensures timely delivery of products, minimising downtime for businesses. Their efficient logistics network makes them a dependable partner in maintaining operational continuity.
By choosing MasterMac2000, businesses gain access to not just pneumatic accessories, but also a reliable partner dedicated to supporting their success.
Trusted Company Heritage and Expertise
Founded in 1989, MasterMac2000 has grown to become a leading privately-owned company specialising in pneumatic and process automation solutions. With headquarters in Brisbane, the company serves customers across Australia, including major cities like Sydney, Perth, and Melbourne.
By choosing MasterMac2000, customers gain a trusted partner in pneumatic and process automation solutions, ensuring operational efficiency and technical excellence.
Contact us today to learn more.
