Corrosion Resistant CR Series American Pneumatic Cylinders


Configure a Part Number & Download CAD Files

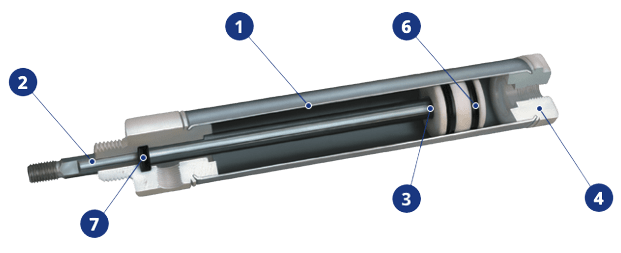

Standard Features & Benefits


1. Stainless Steel Cylinder Body:
Type 304 Stainless Steel manufactured to special mill specifications and tolerances to insure a long cylinder life.

2. Stainless Steel Rod:
Ground & Polished Type 303 Stainless Steel rods are standard on the Aluminum 76 Series. All rods have wrench flats and stress relief grooves.

3. Piston Rod Assembly:
Piston rods are threaded, anaerobically sealed, and machine staked into the piston for triple protection.

4. End Caps, Piston:
Made of acetal resin, a crystalline thermoplastic co-polymer made by the polymerisation of formaldehyde.

5. Springs:
Springs for spring action cylinders are made from music wire and designed for millions of cycles. Special spring forces are available.

6. Buna-N U-Cup Rod & Piston Seals
U-Cup seals provide low breakaway friction and maximize cylinder life expectancy. Standard Buna-N seals are recommended for operating temperatures of -20°F (-25°C) to 200°F (95°C). Fluoroelastomer seals are available for higher temperature applications. Additional special seal compounds and lubricants are available upon request.

7. Rod Seal:
Precision machined rod seal groove provides a smooth sealing surface while positively retaining the seal without requiring additional components and relying on press fit containment.

8. Prelubricated:
All cylinders are factory lubricated with a special high endurance oil mixture. FDA approved lubrication is standard with the FDA seal Option (-35).

9. Pre-Tested:
The quality of each cylinder is assured by testing each unit for leakage prior to shipment. Quality control provides added value to American cylinders.


Corrosion Resistant Air Cylinder Types

  • Single
  • Double Acting
  • Volume Chambers
  • Accessories

Available Options For CR Pneumatic Cylinders

  • Bore Sizes From 9/16" thru 2-1/2"
  • Stroke Selection
  • Bumper Option
  • Seal Material
    • Buna N
    • FDA Approved
    • FKM
  • Rear Head Options
  • Lubrication Type
  • Rod End Options

Mount Options For CR Cylinders

  • Nose Mount
  • Universal Mount
  • Double Rod End



View American Cylinders Corrosion Resistant CR-Series Accessories Catalogue
