Introduction

Pneumatics generally, but specifically the use of pneumatic cylinders, commonly known as air rams, and pneumatic valves, serve as the workhorses of industrial automation across Australia.

This comprehensive guide examines the practical applications of pneumatic cylinders across major Australian industries, providing technical context for each use case and referencing real-world implementations. Understanding these applications helps engineers and maintenance personnel select appropriate cylinder specifications for their specific operational requirements.

Food and Beverage Manufacturing

The Invisible Heartbeat: pneumatic actuation in high-speed beverage processing, shown with a glass bottle on a production line

The food and beverage sector relies heavily on pneumatic automation due to its clean operation, fast cycling capabilities, and hygienic design options. Stainless steel cylinders with FDA-compliant seals and NSF-H1 lubricating grease are standard specifications for equipment contacting food products.

1 Bottling Line Product Transfers

Double-acting pneumatic cylinders position bottles between processing stations, transferring containers from filling to capping to labelling zones. These cylinders operate at high cycle rates, often exceeding 100 cycles per minute, with stroke lengths typically ranging from 50mm to 300mm depending on conveyor spacing. Emerson and Festo both manufacture cylinders specifically designed for bottling applications, featuring IP69K-rated housings that withstand high-pressure washdown procedures.

Pneumatic bottling line product transfer: a stainless washdown cylinder with a soft pusher pad moves a glass bottle between conveyors

2 Cap Placement and Torque Application

Compact pneumatic cylinders drive capping heads downward onto bottle necks whilst rotary actuators apply controlled torque for threaded closures. The vertical actuation typically uses guided cylinders to prevent rotation and ensure precise alignment. Vacuum cup assemblies, actuated by separate pneumatic circuits, pick caps from hoppers and position them for application.

Pneumatic cap placement and torque: a vacuum cup picks a cap while a guided cylinder and rotary actuator drive the capping head onto a bottle

3 Label Applicators

Pneumatic cylinders actuate label dispensing mechanisms, pressing labels onto containers as they pass on conveyor lines. Short-stroke compact cylinders provide the rapid extend-retract motion required for high-speed labelling, whilst precision flow control valves regulate approach speed to prevent label damage or misalignment.

Pneumatic label applicator: a compact cylinder drives a foam tamp pad that presses a label from the web onto a plastic bottle

4 Bottle Sorting and Diverting Gates

Pneumatic swing arm diverters redirect bottles to different processing lines based on criteria such as size, fill level, or label verification. These mechanisms use rotary actuators or linear cylinders with linkage systems to pivot gate arms into the product flow path. Response times under 100 milliseconds are typical for high-speed sorting applications.

Pneumatic bottle sorting and diverting gate: a swing arm diverter routes bottles between conveyor lanes

5 Filling Nozzle Actuation and Positioning

Multi-axis pneumatic positioning systems raise and lower filling nozzles into containers, with vertical cylinders controlling insertion depth. Some systems incorporate guided cylinders with anti-rotation features to maintain nozzle orientation. Piston-type filling mechanisms, driven by pneumatic cylinders, provide volumetric dispensing by drawing product into a chamber then expelling a measured quantity.

Pneumatic filling nozzle actuation: multi-axis positioning with anti-rotation guidance lowers filling nozzles into containers



6 Carton Pushers on Conveyor Systems

Linear pneumatic cylinders push cartons laterally across conveyors for lane changes, accumulation, or transfer to secondary lines. These pushers typically feature low-friction rod seals and adjustable cushioning to handle varying carton weights without product damage. Stroke lengths commonly range from 100mm to 500mm depending on conveyor width.

Pneumatic carton pusher: a guided cylinder pushes a sealed carton sideways from one roller conveyor onto a parallel conveyor

7 Keg Handling and Positioning

Heavy-duty pneumatic cylinders with bore sizes from 63mm to 125mm position beer kegs weighing up to 70kg for filling, cleaning, and palletising operations. These applications often employ rodless cylinders to achieve long stroke lengths whilst maintaining compact mounting footprints suitable for existing facility layouts.

Pneumatic keg handling: a rodless cylinder carriage with a vertical lift cylinder and clamp moves a stainless beer keg along a gantry

8 Product Rejection Systems

Fast-acting pneumatic cylinders divert non-conforming products detected by inspection systems. Operating in conjunction with vision systems or weight sensors, these rejection cylinders must respond within milliseconds to remove defective items from production flow. Compact designs with integrated position sensing enable closed-loop control and reject confirmation.

9 Ingredient Dosing and Dispensing

Pneumatic cylinders actuate dispensing valves and gates controlling ingredient flow into mixing vessels or onto production lines. Precise position control through proportional valves enables variable dosing rates, whilst clean-design cylinders with smooth external surfaces facilitate hygiene compliance in food contact applications.

Pneumatic ingredient dosing: a hygienic round-body cylinder opens a slide gate under a stainless hopper, with a proportional valve controlling the rate

10 Pasteurisation Equipment Actuation

Pneumatic actuators control valves within pasteurisation systems, managing product flow through heating and cooling zones. High-temperature seals rated for exposure above 150 degrees Celsius are essential specifications for cylinders operating near heat exchangers in these installations.

Pneumatic pasteurisation equipment actuation: hygienic process valves with pneumatic actuators and control heads route product between a plate heat exchanger and holding tube, fed from a valve manifold

Packaging and Material Handling

Packaging operations demand pneumatic systems capable of rapid cycling, precise positioning, and reliable operation across extended production runs. The versatility of pneumatic cylinders makes them suitable for applications ranging from delicate film handling to heavy carton manipulation.

11 Carton Forming and Erecting

Pneumatic cylinders fold flat carton blanks into three-dimensional boxes, applying controlled pressure to crease lines whilst vacuum cups hold panels in position. Multiple cylinders operate in coordinated sequences, typically controlled through PLC-managed valve manifolds. Master Mac 2000 offers cylinder families specifically optimised for packaging machinery integration.

Pneumatic carton forming: vacuum cups hold a carton open while side cylinders drive folding paddles to form the box

12 Box Sealing Mechanisms

Pneumatic actuators drive tape application heads and hot melt glue applicators across carton flaps. Guided cylinders maintain consistent applicator pressure against carton surfaces whilst the box travels through the sealing station. Adjustable cushioning at stroke ends protects sensitive adhesive application equipment from impact damage.

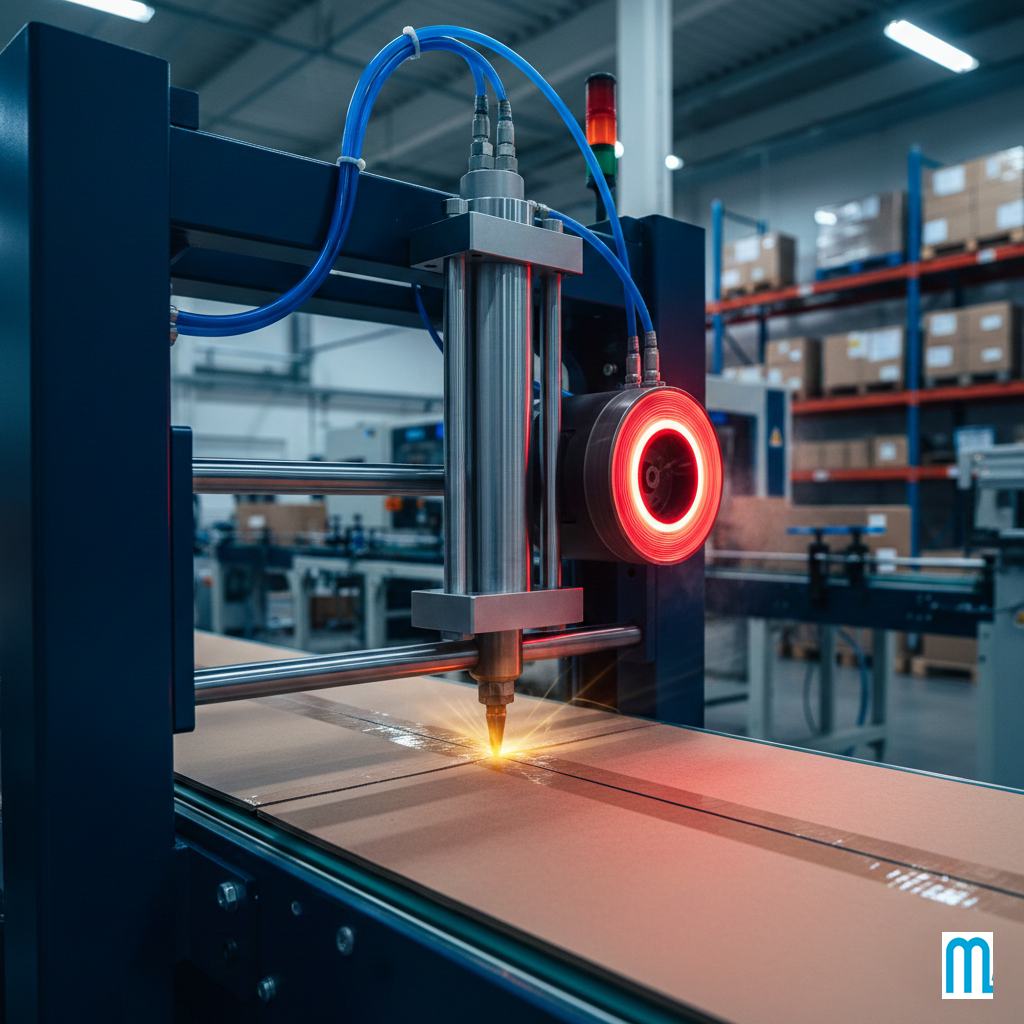

Pneumatic box sealing mechanism: a guided cylinder presses a tape applicator head onto a carton as it passes through the sealing station

13 Product Lane Dividers

Pneumatic swing arms or sliding gates separate single-file product streams into multiple lanes for parallel processing. These dividers operate on timed sequences or respond to upstream accumulation sensors, distributing products evenly across available processing lines.

Pneumatic product lane divider: a clevis-mounted cylinder swings a vertical pivot arm to direct bottles into parallel conveyor lanes

14 Accumulation Gates on Conveyors

Stop-and-release gates controlled by pneumatic cylinders create buffer zones between processing stations, preventing product collisions whilst allowing controlled flow resumption. These gates typically employ rotary actuators or short-stroke cylinders mounted beneath conveyor surfaces to minimise interference with product flow.

Pneumatic accumulation gate on a roller conveyor: a short-stroke cylinder mounted below the rollers raises a stop to hold and release cartons

15 Pallet Load Transfers

Heavy-duty pneumatic cylinders with large bore diameters push loaded pallets between conveyor sections or onto automated guided vehicles. These applications typically require cylinders producing thrust forces exceeding 2000N, achieved through bore sizes of 80mm or larger operating at standard industrial pressures of 6 bar.

Pneumatic pallet load transfer: a large-bore heavy-duty cylinder pushes a loaded pallet of cartons between roller conveyor sections

16 Shrink Wrap Positioning

Pneumatic cylinders position shrink film rolls and control tension during wrapping operations. Diaphragm-style air cylinders provide the smooth, consistent force output essential for maintaining proper film tension without stretching or tearing delicate materials.

Pneumatic shrink wrap positioning: a diaphragm air cylinder holds steady tension on a roll of shrink film feeding over a carton

17 Strapping Machine Actuation

Pneumatic systems power the tensioning, sealing, and cutting mechanisms within automatic strapping machines. Sequential cylinder activation draws strap tight around packages, presses sealing elements together, and actuates cutting blades to separate completed straps from the supply roll.

Pneumatic strapping machine: cylinders tension, seal and cut a strap around a carton inside an automatic strapping frame

18 Case Orientation Systems

Pneumatic rotary actuators and pusher cylinders rotate cases to required orientations for labelling, printing, or palletising operations. Position sensing enables verification that cases have achieved correct alignment before downstream processing continues.

Pneumatic case orientation system: a rotary actuator turntable and pusher cylinder rotate a carton to the correct orientation on a conveyor

19 Bundle Pushers

Long-stroke pneumatic cylinders sweep product bundles from accumulation zones onto conveyors or into packaging stations. Rodless cylinder designs prove particularly effective for these applications, providing extended stroke lengths without requiring space for a projecting piston rod.

Pneumatic bundle pusher: a long-stroke rodless cylinder drives a pusher plate that sweeps wrapped bottle bundles onto an outfeed conveyor

20 Merge and Divert Conveyor Systems

Many conveyor manufacturers integrate pneumatic diverters into sortation systems. These mechanisms use pusher cylinders driving plates across conveyor surfaces, or pivoting belt sections actuated by rotary pneumatic drives, to route products to designated destinations based on barcode scans or sensor inputs.

Pneumatic merge and divert conveyor: a pusher cylinder diverts a barcoded carton onto a branch conveyor after a scanner reads it

21 Carton Flap Folders

Coordinated pneumatic cylinder arrays fold major and minor carton flaps in sequence prior to sealing. Timing between fold operations ensures proper flap overlap whilst preventing jamming or carton damage during high-speed production runs.

Pneumatic carton flap folder: coordinated cylinders on both sides of a conveyor fold the major and minor flaps of an open carton

22 Tray Loading Mechanisms

Pneumatic actuators position products within trays through pushing, lifting, or rotating motions. Vacuum grippers mounted on pneumatic slides pick items from conveyors and place them into tray cavities at rates exceeding 60 placements per minute in high-speed applications.

Pneumatic tray loading mechanism: vacuum grippers on a pneumatic slide pick food products from a conveyor and place them into tray cavities

23 Pallet Dispensers

Pneumatic mechanisms release individual pallets from magazine stacks onto conveyor systems. Cylinder-actuated escapement devices hold the stack whilst releasing the bottom pallet, with position sensors confirming successful dispense before cycling continues.

Pneumatic pallet dispenser: cylinder-actuated escapement arms hold a stack of timber pallets and release the bottom pallet onto a conveyor

Assembly Line Applications

Manufacturing assembly operations depend on pneumatic cylinders for component positioning, insertion, and testing functions. The repeatability and speed of pneumatic actuation support consistent production quality across high-volume manufacturing environments.

24 Component Insertion Systems

Pneumatic cylinders press components into assemblies, from electronic connectors into circuit boards to bearings into housings. Guided cylinder designs prevent lateral deflection during insertion, ensuring proper component seating without damage. Force monitoring through pressure regulation enables detection of misaligned or defective parts.

Pneumatic component insertion system: a guided cylinder presses a connector down onto a circuit board held in a fixture

25 Press-Fit Operations

High-force pneumatic cylinders or air-over-oil intensifiers generate the controlled forces required for interference fit assembly. These systems provide the repeatability needed for quality-critical joints whilst offering faster cycling than hydraulic alternatives for medium-force applications.

Pneumatic press-fit operation: a high-force cylinder presses a bearing into a housing with a regulator and gauge on the air supply

26 Part Positioning Fixtures

Pneumatic clamp cylinders secure workpieces in fixtures during assembly, machining, or welding operations. Toggle clamp designs provide mechanical advantage for high holding forces, whilst swing clamps clear access paths when retracted. Automotive assembly applications extensively use pneumatic fixtures for body-in-white welding operations.

Pneumatic part positioning fixtures: toggle and swing clamp cylinders hold an automotive body panel for welding

27 Testing Station Actuation

Pneumatic cylinders position test probes, apply controlled forces during functional tests, and actuate product loading mechanisms within test stations. Quick exhaust valves enable rapid cycling between test specimens, maximising station throughput whilst maintaining measurement accuracy.

Pneumatic testing station actuation: a cylinder lowers a test probe head onto a part while a screen shows test results

28 Quality Control Probing

Pneumatic slides position measurement probes against product surfaces for dimensional verification. Soft approach speeds controlled through needle valves protect both probes and products whilst ensuring consistent contact force for accurate readings.

Pneumatic quality control probing: a slide cylinder moves a measurement probe against the face of a machined block

29 Workpiece Rotation

Pneumatic rotary actuators turn workpieces to present different faces for multi-sided assembly or inspection operations. Rack-and-pinion style actuators provide precise 90-degree or 180-degree indexing, whilst vane-type units offer continuously variable positioning within their rotation range.

Pneumatic workpiece rotation: a rack-and-pinion rotary actuator turns an indexing table holding a machined part

30 Tool Changing Mechanisms

Pneumatic systems unlock, retract, advance, and lock tool holders within automated tool changing systems. These mechanisms require precise sequencing, often incorporating multiple cylinders operating in coordinated patterns to ensure safe tool exchange without collision or misalignment.

Pneumatic tool changing mechanism: a cylinder drives a tool holder out of the spindle beside a rack of spare tool holders

31 Parts Feeding Gate Control

Escapement mechanisms use pneumatic cylinders to release individual parts from vibratory feeders or magazines. These gates cycle rapidly to maintain consistent part-by-part feeding without jamming or double-feeding that would disrupt assembly timing.

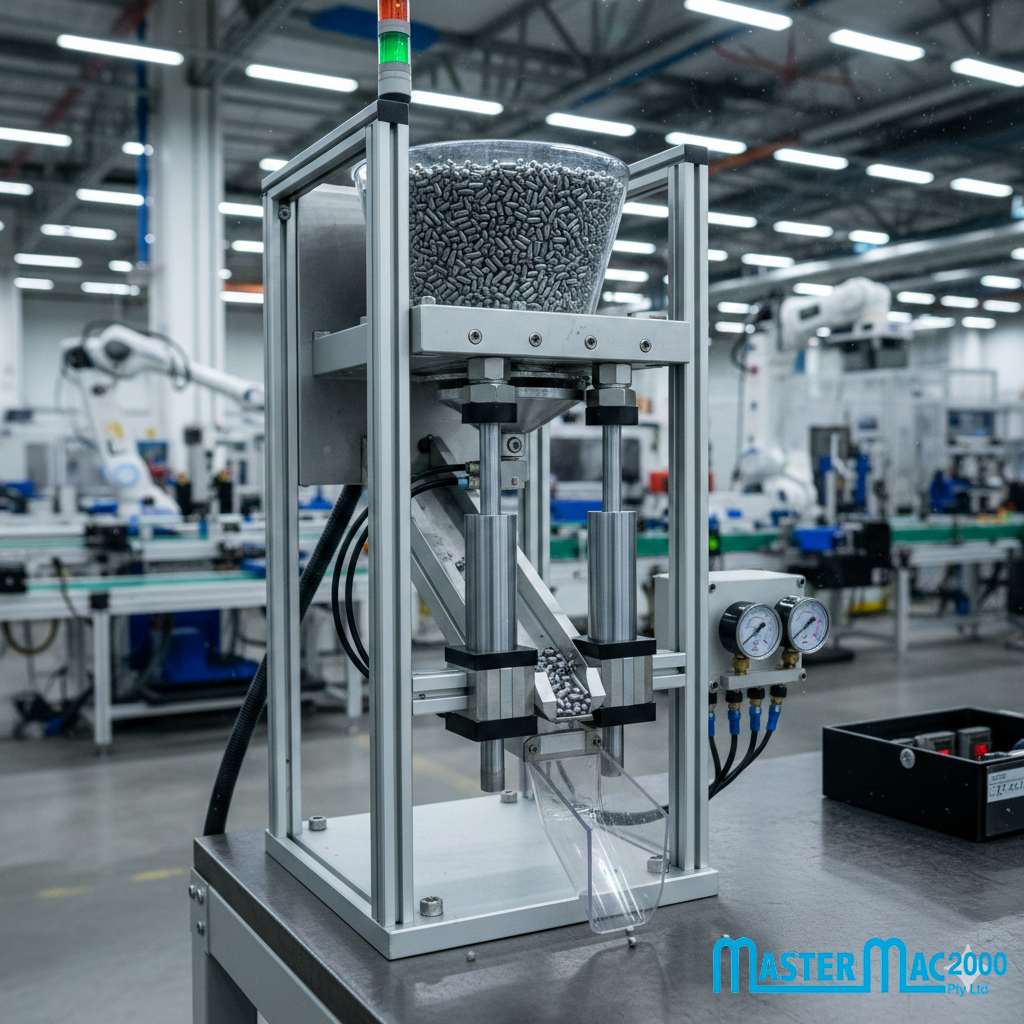

Pneumatic parts feeding gate: a two-pin cylinder escapement releases brass bushes one at a time from a vibratory bowl feeder track

32 Screw Driving Tool Positioning

Pneumatic slides position screw driving spindles over fastening locations, advancing drivers into engagement with fastener heads. Controlled feed rates prevent bit damage whilst ensuring proper seating before torque application begins.

Pneumatic screw driving tool positioning: a vertical guided slide lowers a nutrunner onto a fastener in an aluminium housing

33 Snap-Fit Assembly Operations

Pneumatic pressing systems apply the forces needed to engage snap-fit features on plastic components. Force monitoring through the pneumatic circuit detects incomplete engagement or component damage, supporting quality assurance without separate inspection stations.

Pneumatic snap-fit assembly: a press cylinder pushes a plastic cover onto its base, with a pressure sensor monitoring the force

Material Processing

Material processing operations employ pneumatic cylinders for forming, cutting, and workholding tasks. The clean operation of pneumatic systems proves particularly valuable in applications where hydraulic oil contamination would damage products or create safety hazards.

34 Product Stamping and Punching Presses

Pneumatic presses deliver controlled forces for stamping, punching, and embossing operations on sheet materials. Air-Mite and similar manufacturers produce bench-mounted pneumatic presses generating forces from 500N to 50kN, suitable for applications from circuit board punching to metal stamping.

Pneumatic stamping and punching press: a cylinder drives a punch through sheet metal on a bench press frame

35 Forming Operations

Light-duty forming presses use pneumatic cylinders to shape sheet metal, plastics, and composite materials. The compressibility of air provides natural shock absorption at bottom dead centre, reducing die wear compared to rigid mechanical systems whilst maintaining adequate force for thin material forming.

Pneumatic forming operation: a press cylinder shapes a thin metal sheet over a forming die

36 Cutting Blade Actuation

Pneumatic cylinders drive cutting blades in slitting, shearing, and guillotine cutting machines. Quick exhaust valves maximise blade velocity for clean cuts through materials ranging from paper to sheet metal. Adjustable cushioning protects tooling from impact damage at stroke end.

Pneumatic cutting blade actuation: twin cylinders drive a guillotine blade behind a guard to cut sheet material

37 Trimming Operations

Edge trimming and flash removal from moulded parts often employs pneumatic actuation for the cutting or shearing mechanisms. Compact cylinders fit within constrained spaces around trimming fixtures whilst delivering sufficient force for clean material separation.

Pneumatic trimming operation: a compact cylinder drives a trimming blade to remove flash from a moulded part

38 Edge Pressing

Pneumatic cylinders apply pressure to edge banding, laminate trimming, and seam pressing operations in furniture and panel manufacturing. Controlled force application through regulated air pressure prevents material damage whilst ensuring proper adhesion.

Pneumatic edge pressing: a row of cylinders presses edge banding evenly onto a timber panel

39 Material Clamping in CNC Machines

Pneumatic workholding systems secure raw materials during CNC machining operations. Power clamps activated through pneumatic cylinders provide rapid clamping and release cycles, minimising non-productive time between machining operations whilst maintaining secure fixturing during cutting.

Pneumatic material clamping in a CNC machine: workholding cylinders clamp an aluminium block under the milling spindle

40 Drill Press Operations

Pneumatic feed cylinders provide controlled advancement of drill spindles into workpieces. Feed rate regulation through flow control valves optimises chip formation and tool life whilst pneumatic clamps secure workpieces during drilling.

Pneumatic drill press operation: a feed cylinder advances the drill while a clamp cylinder holds the workpiece

41 Pneumatic Press Brakes

On a pneumatic press brake, compressed air drives the ram itself. A large-bore cylinder, often working through a toggle linkage to multiply its force, pushes the upper punch into the V-die to bend light-gauge sheet. These compact machines suit short runs of brackets, covers and enclosure parts, and cycle quickly from a foot-pedal or two-hand control valve. With no hydraulic oil to leak, heat up or change, they are cleaner and simpler to maintain than hydraulic machines, though they work at lower tonnage.

Pneumatic brake press tooling: cylinders position and support a sheet metal blank at the back gauge of a press brake

Printing and Paper Converting

Web-handling applications in printing and converting demand pneumatic systems capable of precise tension control and rapid response to process variations. Diaphragm air cylinders feature prominently due to their virtually friction-free operation, essential for consistent tension maintenance.

42 Web Tension Control Rollers

Dancer roll mechanisms use pneumatic cylinders to apply counteracting force against web tension, maintaining consistent material handling through variations in roll diameter, line speed, and material properties. Dover Flexo Electronics and similar suppliers offer complete tension control systems integrating load cells, controllers, and pneumatic brakes for printing press applications.

Pneumatic web tension control: a cylinder-loaded dancer roller keeps steady tension on a paper web running off a roll

43 Cutting Knife Actuation

Rotary knife cylinders and guillotine cutters in paper converting lines employ pneumatic actuation for blade engagement. The speed and repeatability of pneumatic systems supports precise cut registration in high-speed converting operations.

Pneumatic cutting knife actuation: a cylinder drives a guillotine knife across paper in a converting line

44 Perforation Systems

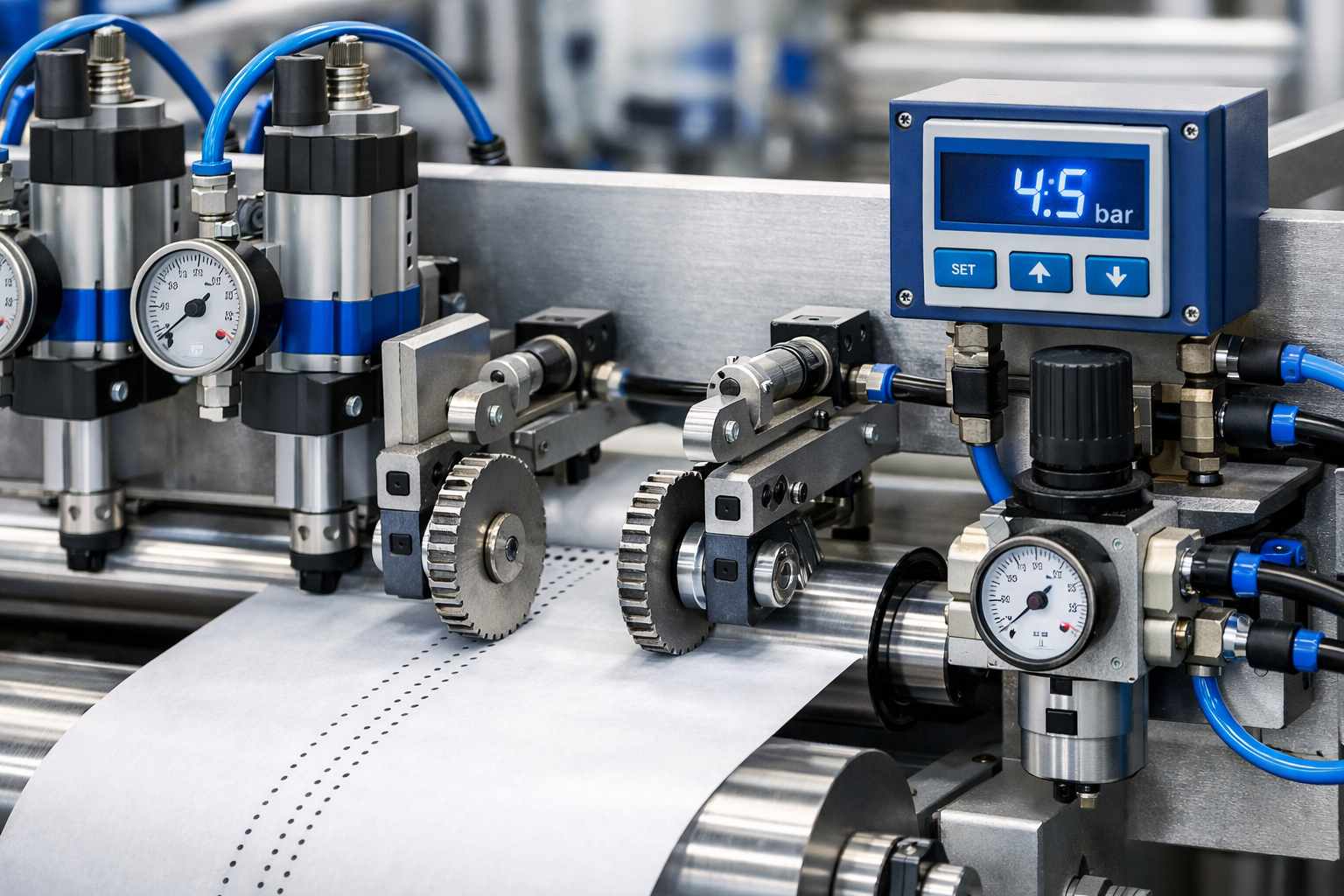

Pneumatic cylinders engage perforation wheels against web materials, with pressure control enabling adjustment for different substrates without mechanical changeover. Position feedback confirms wheel engagement before converting operations continue.

Pneumatic perforation system: cylinders press perforating wheels onto a paper web, with regulators and a digital gauge setting the pressure

45 Paper Stack Joggers

Vibrating tables using pneumatic cylinders align sheet stacks prior to binding or packaging. Adjustable stroke and frequency settings accommodate varying paper sizes and stack weights.

Pneumatic paper stack jogger: cylinders vibrate a table to align a stack of paper sheets

46 Signature Gathering

Pneumatic grippers and pushers feed folded signatures from hoppers onto gathering chains in bookbinding operations. Timing synchronisation with chain movement ensures accurate placement for subsequent binding steps.

Pneumatic signature gathering: a gripper cylinder feeds folded signatures from a hopper onto a gathering chain

47 Folding Mechanisms

Paper folding equipment uses pneumatic cylinders to actuate folding plates and buckle chutes. Quick response enables high-speed folding whilst adjustable pressure prevents marking or damage to paper surfaces.

Pneumatic folding mechanism: a guided cylinder drives a folding knife that pushes a paper sheet into the fold rollers

48 Register Adjustment

Pneumatic micro-positioning systems make fine adjustments to web tracking and print registration. Proportional control valves enable precise, repeatable corrections responding to registration sensor feedback.

Pneumatic register adjustment: a micro-positioning cylinder makes fine corrections to a printed web, guided by a registration sensor

49 Die Cutting Operations

Pneumatic cylinders provide the force for rotary and platen die cutting in label and carton converting. Pressure adjustment through regulators accommodates varying substrate thicknesses and die requirements.

Pneumatic die cutting: a press cylinder drives a cutting die onto sheet material to cut carton blanks

Plastics and Injection Moulding

Injection moulding operations employ pneumatic systems for part ejection, material handling, and auxiliary machine functions. The clean operation of pneumatic cylinders avoids contamination risks associated with hydraulic systems in proximity to moulded products.

50 Mould Clamping

Light-tonnage moulding applications sometimes employ pneumatic clamping, particularly for prototype tooling or low-volume production where hydraulic infrastructure is not justified. Air-over-oil systems provide higher forces whilst maintaining pneumatic control simplicity.

Pneumatic mould clamping: a large cylinder closes and clamps a small injection mould

51 Ejector Pin Actuation

Pneumatic cylinders actuate ejector mechanisms within moulds, pushing finished parts from cavity surfaces. These systems prove particularly effective for thin-walled containers where the even pressure distribution of air ejection reduces part distortion compared to mechanical pin systems.

Pneumatic ejector pin actuation: a cylinder pushes ejector pins to release a moulded plastic tray from the mould

52 Gate Cutting

Pneumatic cutters separate moulded parts from runner systems in automated degating operations. Quick-acting cylinders ensure clean cuts without pulling or distorting part surfaces near gate locations.

Pneumatic gate cutting: a cylinder-driven cutter separates moulded plastic parts from the runner

53 Part Removal Systems

Pneumatic grippers mounted on linear slides or articulated arms extract moulded parts from open moulds. Vacuum cups, mechanical fingers, or combinations thereof grip parts for transfer to conveyors or secondary operations.

Pneumatic part removal system: a gantry take-out unit with vacuum cups and grippers lifts a moulded plastic container from an open mould

54 Conveyor Diverters for Sorted Parts

Pneumatic diverters separate moulded parts by cavity identification, colour, or quality status. Integration with vision systems or other inspection equipment enables automatic sorting without operator intervention.

Pneumatic conveyor diverter for sorted parts: a pivot-mounted cylinder swings a diverter paddle to route parts onto a branch conveyor after camera inspection

55 Cooling Fixture Positioning

Pneumatic cylinders position cooling fixtures against hot moulded parts, maintaining shape during solidification. Controlled contact force prevents deformation whilst ensuring effective heat transfer to cooling media.

Pneumatic cooling fixture positioning: cylinders press cooling fixtures against a freshly moulded part to hold its shape

56 Trim Press Actuation

Secondary trimming operations removing flash or excess material from moulded parts often employ pneumatic presses. These systems provide the consistent force and speed needed for high-volume trimming whilst occupying less floor space than hydraulic alternatives.

Pneumatic trim press actuation: a press cylinder trims excess material from thermoformed plastic trays



Mining Support Equipment

Mining operations throughout Queensland and Western Australia rely on pneumatic systems for their intrinsic safety characteristics in potentially explosive atmospheres. Heavy-duty cylinders handle the demanding conditions of mineral processing environments.

57 Sample Collection Systems

Pneumatic cylinders actuate sampling mechanisms that extract representative material portions from conveyor streams or process flows for laboratory analysis. These systems operate in dusty, abrasive conditions requiring robust sealing and corrosion-resistant materials.

Pneumatic sample collection system: a pivot-mounted cylinder swings a stainless sample cutter through ore on a mining conveyor into a sample canister

58 Pneumatic Gate Valves

Knife gate valves with pneumatic actuators control material flow in slurry pipelines, ore processing, and bulk handling operations. Various manufacturers produce heavy-duty pneumatic knife gate valves specifically designed for mining industry applications handling abrasive slurries and particulate-laden materials.

Pneumatic knife gate valve: a cylinder drives a stainless knife plate down through a slurry pipeline at a mine site

59 Material Flow Control

Pneumatic cylinders operate chute gates, bin discharge mechanisms, and diverter systems controlling material movement through processing facilities. Large bore cylinders generate forces sufficient to break material bridges and initiate flow from storage vessels.

Pneumatic material flow control: a cylinder drives a crank arm on the shaft of a full-width diverter flap inside a two-way ore chute at a processing plant

60 Dust Extraction Dampers

Pneumatic actuators position dampers within dust collection systems, adjusting airflow distribution to optimise particulate capture. Remote operation via pneumatic circuits eliminates electrical components from potentially explosive dust-laden environments.

Pneumatic dust extraction damper: a cylinder actuator positions a butterfly damper inside dust collection ducting

61 Emergency Shutdown Systems

Spring-return pneumatic actuators provide fail-safe closure of isolation valves during emergency conditions. Loss of air supply automatically returns these valves to safe positions, protecting personnel and equipment without requiring electrical power during emergencies.

Pneumatic emergency shutdown system: a spring-return actuator closes an isolation valve fail-safe on loss of air

62 Hopper Discharge Control

Pneumatic cylinders actuate slide gates and pinch valves controlling material discharge from hoppers and silos. Large-format cylinders operating at elevated pressures generate forces needed to open gates against material weight and pressure.

Pneumatic hopper discharge control: a cylinder opens a slide gate under a hopper to meter material onto a conveyor



Automotive Applications

Whilst full automotive manufacturing production lines are no longer in Australia, pneumatic systems support automotive service operations, component manufacturing, and testing facilities throughout the country.

63 Tyre Changing Equipment

Pneumatic cylinders power tyre changing machines, providing the forces needed to break tyre beads from wheel rims and mount new tyres. Service workshop equipment extensively employs pneumatic actuation for its simplicity and safety around vehicle service operations.

Pneumatic tyre changing machine: air-operated clamp jaws grip the wheel rim on the turntable while the mount head and pneumatic helper arm work the tyre onto the rim

64 Brake Testing Rigs

Pneumatic cylinders apply controlled forces to brake components during testing and development. Force repeatability ensures consistent test conditions across multiple test cycles whilst adjustable pressure provides variable loading capability.

Pneumatic brake testing rig: a cylinder applies controlled force to a brake caliper and disc, with test readings on screen

65 Parts Cleaning Fixtures

Pneumatic clamps secure automotive components during cleaning operations, withstanding exposure to solvents and elevated temperatures. Stainless steel cylinder construction resists corrosion from cleaning chemicals.

Pneumatic parts cleaning fixture: clamp cylinders hold an automotive casting while cleaning sprays wash it

66 Component Test Stands

Automotive component testing frequently employs pneumatic actuation for loading, cycling, and positioning functions. The ability to simulate rapid cycling conditions whilst monitoring force through pressure measurement makes pneumatic systems valuable for durability testing.

Pneumatic component test stand: a cylinder cycles an automotive suspension arm for durability testing

67 Alignment Equipment

Pneumatic lifting platforms and positioning devices support vehicles during wheel alignment procedures. Controlled lift heights and stable positioning enable accurate alignment measurements and adjustments.

Pneumatic alignment equipment: an air-operated jacking beam lifts a car between the runways of a wheel alignment lift

68 Paint Booth Door Actuation

Pneumatic cylinders open and close paint booth doors without introducing electrical ignition sources into solvent-laden atmospheres. Stainless steel cylinders resist corrosion from paint overspray and cleaning solvents.

Pneumatic paint booth door actuation: a slim stainless cylinder pivoted on a wall bracket pushes a spray booth door open, supplied from a filter-regulator and valve box



Woodworking and Furniture Manufacturing

Australian furniture manufacturers and joinery shops employ pneumatic systems for clamping, pressing, and positioning operations. The clean operation of pneumatic cylinders suits workshop environments where sawdust and timber shavings would contaminate hydraulic fluids.

69 Panel Clamping

Pneumatic clamps secure panel assemblies during glueing, edge banding, and machining operations. Woodworking equipment suppliers offer pneumatic clamping systems designed specifically for furniture manufacturing applications, providing rapid clamping cycles without the physical effort of manual clamping.

Pneumatic panel clamping: a row of clamp cylinders presses timber boards together during glueing

70 Veneer Pressing

Pneumatic press cylinders apply pressure during veneer application, ensuring proper adhesive contact across panel surfaces. Multiple cylinders distributed across press platens provide uniform pressure distribution for consistent bond quality.

Pneumatic veneer pressing: eight press cylinders mounted on a crosshead apply even pressure through a platen onto a veneered panel

71 Edge Banding Feed Systems

Pneumatic cylinders feed edge banding material through application heads and control pressure roller engagement. Consistent feed pressure ensures proper adhesion without stretching or distorting banding materials.

Pneumatic edge banding feed system: cylinder-loaded pressure rollers press edge banding onto the edge of a panel

72 Saw Blade Positioning

Pneumatic systems raise, lower, and tilt saw blades in panel saws and machining centres. Position feedback confirms blade location before material feeding commences, supporting safe operation sequences.

Pneumatic saw blade positioning: cylinders raise and tilt a circular saw blade under a panel saw guard

73 Sanding Drum Pressure Control

Diaphragm cylinders or rolling diaphragm actuators apply controlled pressure to sanding drums, enabling consistent material removal across varying surface profiles. Pressure adjustment through regulators accommodates different timber species and finishing requirements.

Pneumatic sanding drum pressure control: a diaphragm actuator holds steady pressure on a sanding drum over a timber board

74 Board Pushers on Cutting Lines

Pneumatic cylinders push timber boards into sawing positions and advance material through cutting operations. Stroke lengths up to several metres are achieved using rodless cylinder designs that maintain compact mounting profiles.

Pneumatic board pusher on a cutting line: a long-stroke rodless cylinder pushes a timber board towards the saw

75 Drilling Jig Actuation

Pneumatic clamps secure workpieces in drilling jigs whilst cylinders advance drill spindles. Coordinated actuation ensures workpieces are fully clamped before drilling begins and remain secured until spindles fully retract.

Pneumatic drilling jig actuation: clamp cylinders hold a timber workpiece down while a feed cylinder advances the drill



Warehouse and Distribution

Distribution centres and warehouses throughout Australia utilise pneumatic actuation for sortation, accumulation, and material handling systems. The reliability of pneumatic systems supports continuous operation across multiple shifts.

76 Sortation System Diverters

High-speed sortation systems use pneumatic pushers, pop-up wheel diverters, and sliding shoe mechanisms to route parcels to designated destinations. Operating at rates exceeding 100 sorts per minute, these systems demand cylinders capable of millions of cycles without failure.

Pneumatic sortation system diverter: pop-up cylinders lift wheel diverters to route a barcoded parcel onto a branch conveyor

77 Parcel Pushers

Linear pneumatic cylinders push parcels laterally onto chutes, conveyors, or into loading positions. Impact-resistant pusher plates distribute contact forces to prevent package damage whilst achieving rapid cycle times.

Pneumatic parcel pusher: a cylinder with a padded pusher plate pushes a carton sideways off a conveyor

78 Loading Dock Positioning Systems

Pneumatic cylinders actuate dock levellers, restraint systems, and door operations at loading docks. These systems handle the demanding duty cycles of busy distribution facilities whilst providing safe, reliable operation for personnel and equipment.

Pneumatic loading dock positioning system: a cylinder swings a restraint hook to secure a truck at a loading dock

79 Pallet Dispensing

Magazine-style pallet dispensers use pneumatic cylinders to release individual pallets from stacks. Escapement mechanisms controlled by cylinder position ensure single pallet release with each cycle.

Pneumatic pallet dispensing: escapement cylinders hold a stack of pallets and release one onto a roller conveyor

80 Conveyor Merge and Divert Gates

Pneumatic gate mechanisms control product flow at conveyor intersections, enabling controlled merging of multiple inbound lines or distribution to various outbound destinations. Response timing coordinates with product tracking systems to ensure accurate routing.

Pneumatic conveyor merge and divert gate: a cylinder swings a gate to guide cartons where conveyor lines meet

81 Automated Storage and Retrieval

Light-duty automated storage systems employ pneumatic actuators for shuttle positioning and load handling functions. Compact cylinder designs fit within constrained spaces of storage systems whilst delivering adequate forces for load manipulation.

Pneumatic automated storage and retrieval: a compact cylinder on a shuttle pulls a storage tote from its rack



Robotic End Effectors

Pneumatic actuation remains the predominant technology for robotic grippers and tool changers due to its speed, simplicity, and reliability. Many manufacturers offer extensive ranges of pneumatic end effectors designed for robotic applications.

82 Pneumatic Grippers

Two-finger parallel grippers, three-jaw centring grippers, and angular gripper designs provide the mechanical grasp needed for pick-and-place operations. Gripper selection depends on part geometry, weight, surface characteristics, and cycle time requirements.

Pneumatic gripper on a robot arm: a two-finger parallel gripper picks up a machined part

83 Vacuum Cup Actuation

Pneumatic circuits supply vacuum generators powering suction cup grippers for handling flat or smooth-surfaced parts. Venturi-effect vacuum generators provide compact, responsive vacuum generation without separate vacuum pump infrastructure.

Pneumatic vacuum cup actuation: suction cups on a robot end effector lift a sheet of glass

84 Tool Changers

Pneumatic locking mechanisms secure interchangeable end effectors to robot wrists, enabling rapid changeover between different tooling configurations. Automatic tool changing systems use pneumatic actuation for engagement and release whilst providing mechanical latching for fail-safe tool retention.

Pneumatic robot tool changer: a locking mechanism couples a gripper tool to a robot wrist



Conclusion

Pneumatic cylinders continue to serve as fundamental building blocks of industrial automation across virtually every manufacturing sector in Australia. Their combination of speed, reliability, clean operation, and cost-effectiveness ensures ongoing relevance despite advances in electric actuation technology.

Successful application of pneumatic cylinders requires matching cylinder specifications to operational demands, encompassing bore size selection for required forces, stroke length determination, environmental material considerations, and appropriate mounting configurations. Equally important is providing cylinders with properly prepared compressed air through filtration, regulation, and where required, lubrication.

MasterMac 2000 stocks pneumatic cylinders from established manufacturers including Univer, Tolomatic, Bimba, and Piab, along with Australian-made Mack Valves. Our technical team provides sizing assistance, selection guidance, and system design support for applications across food processing, mining, manufacturing, and material handling industries throughout Queensland and Northern New South Wales.


Master Mac 2000 Logo

About MasterMac2000: Your Trusted Pneumatic & Process Automation Partner.

LEADING THE INDUSTRY: Established in 1989, MasterMac2000 has grown to become one of Australia's largest privately owned pneumatic and process automation companies. We stock top-quality brands like Univer, Mack, Tolomatic, Mac, Piab, American, and Rotoflux in Brisbane.

SERVING QLD & NORTHERN NSW: We proudly service Queensland and Northern New South Wales for all your pneumatic and process equipment needs. Our mission is to provide the best pre and post-sales support while actively expanding our client base.

SOURCING HARD-TO-FIND PARTS: Not only do we stock quality components, but we also excel at sourcing those elusive, hard-to-find parts. With our extensive database and global network of contacts, getting the parts you require is as easy as a call to our highly skilled, professional sales team.

DEDICATED TO YOUR SUCCESS:

  • Decades of expertise in pneumatics & process automation
  • Carefully curated selection of world-class brands
  • Exceptional sourcing capabilities for speciality parts
  • Knowledgeable sales staff dedicated to finding solutions
  • Unwavering commitment to customer service excellence


About The Author

Stuart Havill

Stuart Havill is the owner and manager of MasterMac2000, Queensland's largest privately owned pneumatic and process valve company.

With his early working career as a maintenance fitter for Boral in 1992, Stuart has spent his life in the field of pneumatics and process equipment. He gained extensive experience in plant design, maintenance, repairs, fabrication, and site management.

In 1996, he transitioned to a pneumatic sales technician role at MasterMac2000, where he excelled in key account management, providing cost-effective solutions, and managing a sales team of 9 employees.

Since 2002, Stuart has been the manager at MasterMac2000, overseeing the company's growth and establishing it as a leader in pneumatic automation and process valve engineering. His expertise spans customer training, CRM setup, industrial compressor sizing and installation, and turn-key project management.

Under Stuart's leadership, MasterMac2000 has been servicing the industry since 1988, with 5 full-time sales representatives covering northern rivers NSW, Queensland, Northern Territory, and PNG. The company prides itself on providing the best-priced solutions to all customers in the marketplace.

View Stuart’s LinkedIn profile to learn more about his expertise in pneumatics and process equipment.

Leave a Comment
