ISO Standards for Pneumatic Cylinders: What Technicians Need to Know



A cylinder fails on a packaging line at 2 AM. The maintenance technician pulls the spec sheet, confirms it is an ISO 15552 compliant unit with a 63 mm bore, and orders a replacement from a different manufacturer. It arrives, bolts straight in, and the line runs again by morning shift. That scenario plays out in factories across Australia because international standards ensure pneumatic cylinders from different brands share identical mounting dimensions, port positions and accessory interfaces.

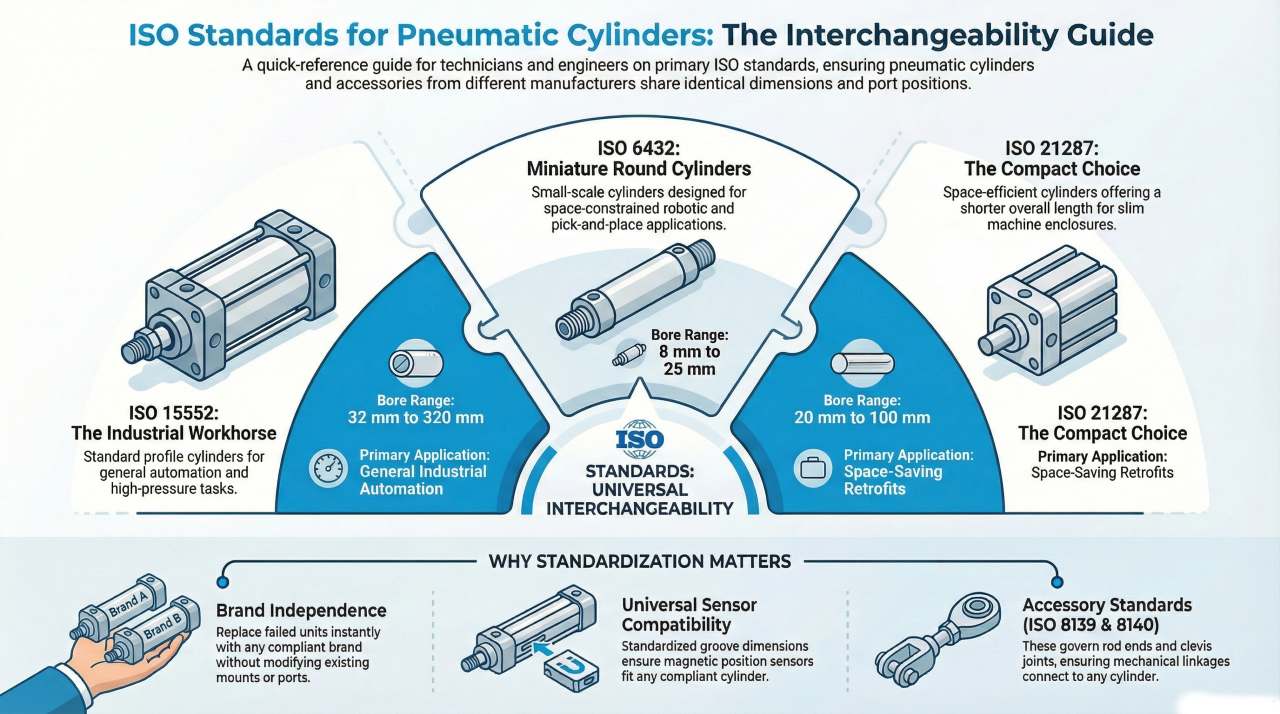

There are six key ISO standards that relate directly to pneumatic cylinders:

ISO 15552:	Profile cylinders with detachable mountings
ISO 6432:	Miniature round cylinders
ISO 21287:	Compact cylinders
ISO 15524:	Short-stroke cylinders
ISO 8139:	Rod end dimensions
ISO 8140:	Clevis joint dimensions

Understanding these standards matters for anyone specifying, installing or maintaining pneumatic equipment. They determine which cylinders interchange, which mounting brackets fit, and whether sensors from your existing stock will work on a replacement unit. This guide covers the main ISO standards governing pneumatic cylinders and explains their practical implications for industrial automation.

ISO 15552: The Primary Standard for Profile Cylinders

ISO 15552 defines the dimensions and interfaces for standard profile pneumatic cylinders with detachable mountings. It covers bore sizes from 32 mm through to 320 mm, encompassing the range used in most general industrial automation. Maximum rated working pressure sits at 10 bar (1000 kPa), which aligns with typical factory air supply capabilities.

The standard specifies critical dimensions including barrel outside diameter, mounting hole patterns, tie rod positions, port thread sizes and their locations relative to the end caps. It covers both single-rod configurations, where the piston rod extends from one end only, and double-rod designs where rods emerge from both ends for applications requiring equal force in both directions or external guidance.

Magnetic piston sensing receives particular attention. ISO 15552 defines the groove dimensions and positions for mounting reed switches or Hall-effect sensors that detect piston position through the cylinder wall. This standardisation means a sensor from one manufacturer’s accessory range will fit cylinders from any compliant supplier.

Mounting interfaces follow defined patterns for foot mounts, flange mounts, clevis brackets and trunnion pivots. A technician ordering a rear clevis for a 50 mm bore ISO 15552 cylinder knows the bolt pattern and pin diameter will match regardless of whether the cylinder came from Festo, SMC, Univer or any other standards-compliant manufacturer.

ISO 15552 largely superseded the earlier ISO 6431 standard. Both specifications are functionally similar, covering the same bore range with comparable dimensional requirements. Cylinders built to either standard generally interchange, though ISO 15552 is the current confirmed version and should be referenced for new designs. Some older machinery documentation still references ISO 6431, and replacement cylinders meeting ISO 15552 will fit those installations.

ISO 6432: Miniature Round Cylinders

Where ISO 15552 covers the workhorses of industrial pneumatics, ISO 6432 addresses the smaller end of the scale. This standard defines miniature round-body cylinders with bores typically ranging from 8 mm to 25 mm. The round profile distinguishes them from the extruded aluminium shapes of larger profile cylinders.

These compact cylinders suit applications where space is severely constrained. Precision automation, small pick-and-place mechanisms, and robotic end effectors frequently use ISO 6432 cylinders because their slim envelope fits where larger units cannot. Despite their size, they still operate at the same 10 bar rated pressure as their bigger counterparts.

The standard specifies body diameter, end cap dimensions, port thread sizes (typically M5 for smaller bores, M7 or G1/8 for larger ones), and rod diameters. Stroke lengths are not standardised because application requirements vary widely, but the body dimensions and mounting threads follow the specification precisely.

Interchangeability works the same way as for larger cylinders. An 8 mm bore ISO 6432 cylinder from one supplier mounts identically to an 8 mm bore unit from another. This proves particularly valuable in high-volume assembly where equipment might incorporate dozens of small cylinders and maintenance requires consistent spare parts across different machine builds.

ISO 21287: Compact Cylinders

ISO 21287 addresses the gap between miniature round cylinders and full-size profile units. It specifies compact cylinders with bores typically between 20 mm and 100 mm, designed to deliver comparable force to standard cylinders from a shorter overall envelope.

The compact designation refers to reduced body length rather than bore size. Where an ISO 15552 cylinder might require 150 mm of mounting length for a given stroke, an ISO 21287 unit achieves the same travel in perhaps 80 mm. This space saving matters in retrofits where existing machinery leaves little room, and in new designs where compactness reduces machine footprint and material handling reach.

Port positions and mounting patterns receive standardisation, though compact cylinders are not always dimension-for-dimension identical to ISO 15552 units across all mounting types. Some accessories interchange while others require compact-specific versions. Magnetic sensors typically fit because groove dimensions follow similar conventions, but physical mounting brackets may differ.

Compact cylinders have become increasingly common in modern machinery. Their shorter length reduces the space needed behind a mounting surface, allowing machine designers to build slimmer enclosures and position cylinders closer to the work. The trade-off is typically higher cost per unit of force compared to standard profile cylinders, offset by reduced machine footprint and simplified installation in tight locations.

ISO 15524: Short-Stroke Cylinders

ISO 15524 covers very short-stroke cylinder configurations, typically with strokes smaller than what the standard ISO 15552 or ISO 21287 ranges accommodate. These cylinders suit applications requiring minimal linear travel, perhaps just enough to engage a clamp, actuate a brake, or nudge a product into alignment.

In contemporary practice, ISO 15524 sees less reference than the other standards. Many applications that would have used dedicated short-stroke cylinders now specify compact ISO 21287 units with appropriately short strokes, simplifying inventory by consolidating around fewer standards. New machinery designs tend to favour the broader ISO 21287 family unless very specific short-stroke dimensions drive the selection.

Maintenance technicians may still encounter ISO 15524 cylinders in older equipment. Replacement typically involves either sourcing a direct equivalent from the original manufacturer or identifying a dimensionally compatible unit from the compact cylinder ranges now available.

Supporting Standards for Mounting Hardware

Two additional ISO standards govern the accessories that connect cylinders to mechanical systems. While they do not define cylinder dimensions themselves, they ensure consistent interfaces between cylinders and the linkages they drive.

ISO 8139 specifies dimensions for rod ends, also called rod eye brackets or ball joints. These fittings attach to the piston rod thread and connect to mechanical linkages through a spherical bearing. The standard defines thread sizes, ball diameters, housing dimensions and load ratings. A rod end built to ISO 8139 connects to any cylinder with the corresponding rod thread size.

ISO 8140 covers clevis joints, the fork-and-pin connections used at cylinder rear mounts. The standard specifies clevis width, pin diameter, hole spacing and thread dimensions. This standardisation allows a clevis bracket from one manufacturer to accept pins and clevises from another, simplifying spare parts management and enabling cross-brand component substitution.

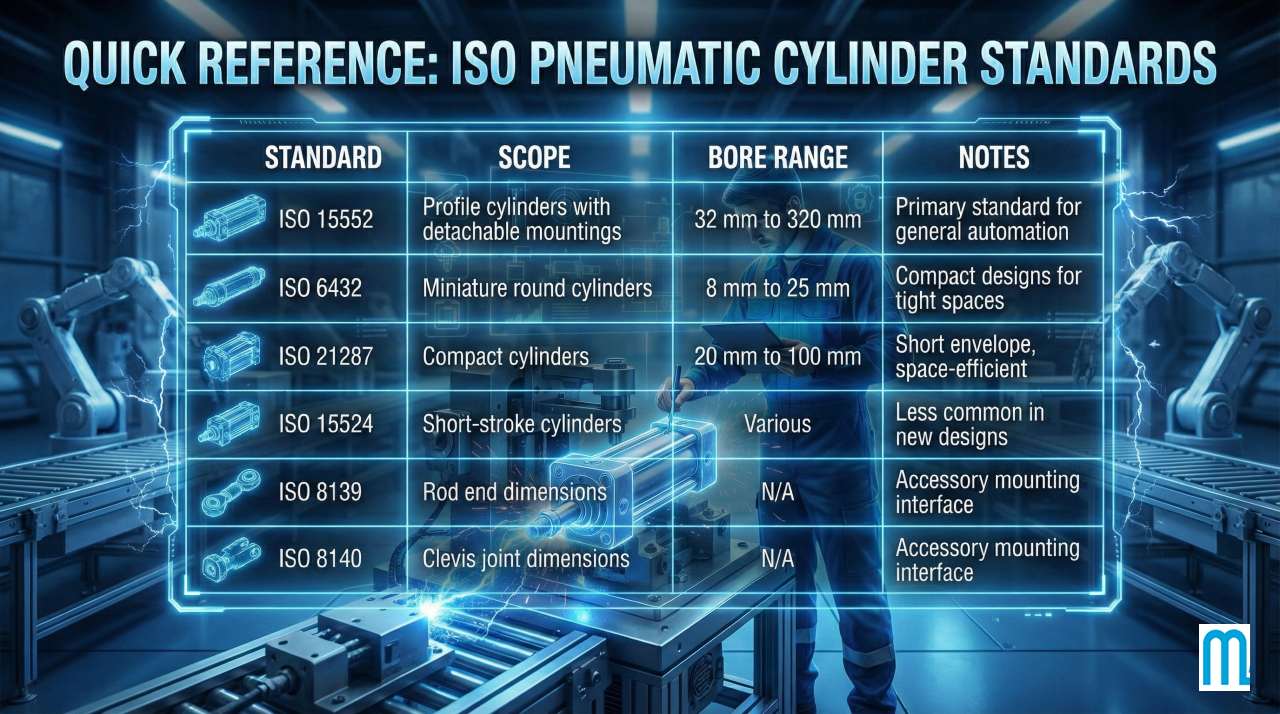

Quick Reference: ISO Pneumatic Cylinder Standards

The following table summarises the main standards and their application scope.

Why Standards Matter in Practice

Physical interchangeability between manufacturers provides obvious benefits for maintenance and procurement. When a cylinder fails, sourcing a replacement does not depend on the original manufacturer having stock or still producing that model. Any supplier carrying ISO-compliant cylinders can provide a unit that mounts identically.

This interchangeability extends to second-sourcing during initial machine builds. Design engineers can specify cylinders by ISO standard and bore size without locking into a single supplier, enabling competitive procurement and protecting against supply chain disruptions. The cylinder in the CAD model need not come from the same brand as the unit eventually installed.

Retrofit projects benefit substantially from standardisation. When upgrading control systems or adding automation to existing equipment, knowing that ISO 15552 cylinders interchange means existing mounting brackets and air connections remain usable. The mechanical infrastructure stays in place while only the cylinders themselves change.

Sensor compatibility follows similar logic. Magnetic position sensors built for ISO 15552 groove dimensions work across all compliant cylinders. Maintenance stocks can hold sensors suitable for any machine on the floor rather than brand-specific variants for each installation.

Documentation and training also become simpler. Technicians who understand the ISO 15552 mounting patterns can work on any compliant cylinder regardless of manufacturer. Troubleshooting procedures, installation practices and maintenance schedules apply broadly rather than requiring brand-specific knowledge.

Specifying Cylinders by Standard

When ordering pneumatic cylinders, referencing the applicable ISO standard removes ambiguity. A specification reading “ISO 15552 compliant, 63 mm bore, 200 mm stroke, rear clevis mount” tells any supplier exactly what is needed. The cylinder will fit existing brackets, accept standard sensors, and interchange with units from other manufacturers meeting the same specification.

For compact applications, specifying ISO 21287 compliance ensures the shorter envelope comes with standardised mounting interfaces. Miniature applications calling for ISO 6432 cylinders gain the same interchangeability benefits at smaller scale.
