Steps To Troubleshooting Pneumatic Systems

(Updated: March 2025)

1. Introduction: The Ghost in the Machine

It happens in a heartbeat: a high-speed production line that was humming perfectly seconds ago suddenly stutters. An actuator drifts, a cylinder moves with a strange, jerky hesitation, or the entire machine simply grinds to a halt. In the high-pressure environment of a modern plant, the instinct is to grab a wrench and start replacing the most likely culprit—usually the solenoid or the cylinder itself.

On paper, pneumatic systems are the “simple” workhorses of industry—air goes in, motion comes out. However, their true complexity lies in a web of interlinked components and the precise volumetric flow required for optimal performance. When a system fails, the most “obvious” fix is frequently a red herring. To restore your uptime, you must look past the mechanical surface and master the invisible physics of compressed air.

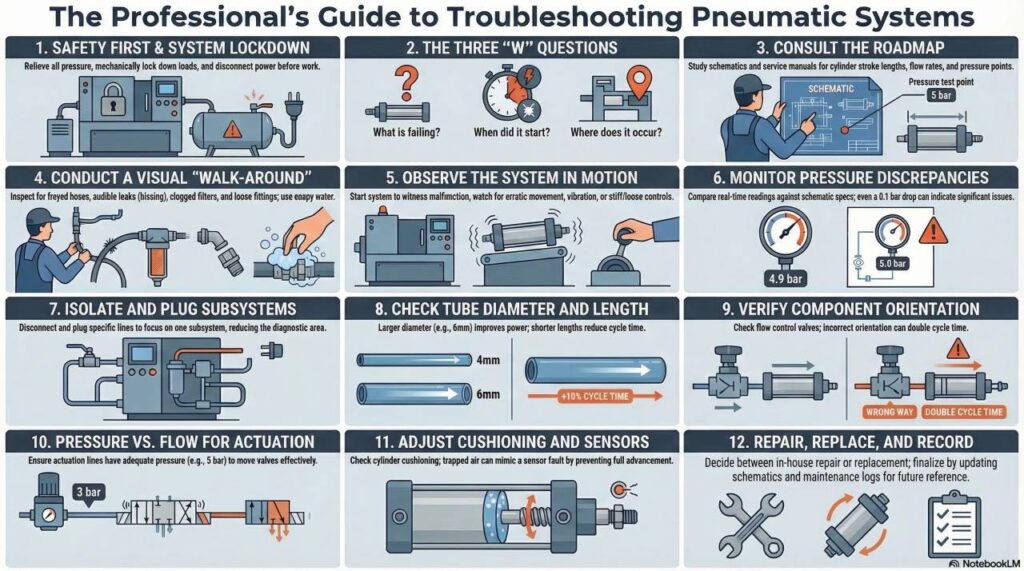

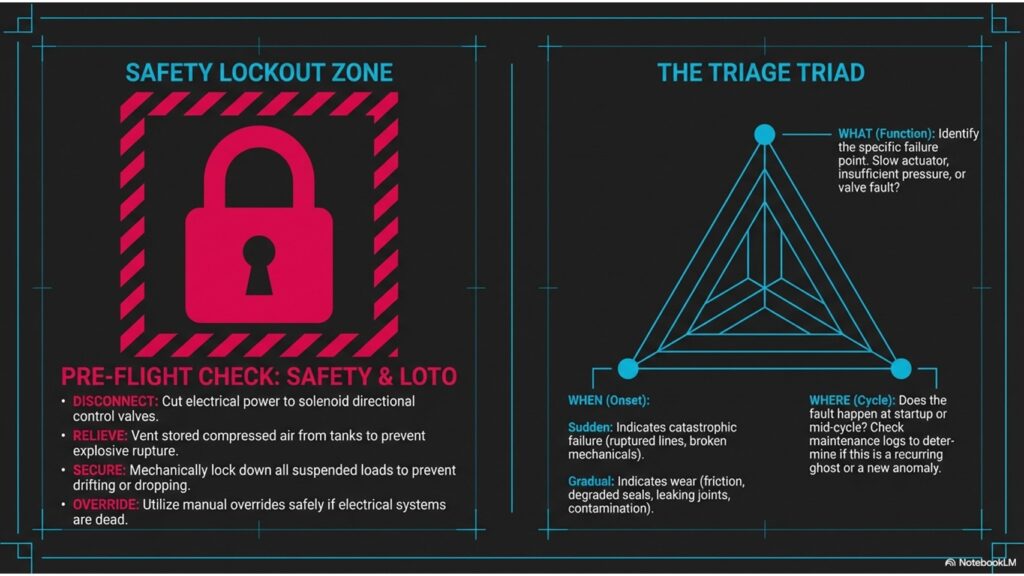

2. The Silent Danger: Safety as the First Diagnostic Step

Before a single gauge is checked, the system must be rendered completely safe. In pneumatics, safety isn’t merely a compliance checkbox; it is the fundamental foundation of diagnostics. Compressed air represents stored high energy that can turn a simple repair into a life-threatening event.

Troubleshooting must begin by relieving pressure in the storage tanks and securing any loads that are not mechanically locked down. If a load is left unsupported, it can “drift” or fall as soon as air pressure is removed or a line is disconnected. Utilising lockout valves is imperative to prevent accidental operation while your hands are inside the machine. Additionally, expert technicians know to utilise manual overrides on solenoid valves or manual bypass lines to minimise the effect of failure on the process while hunting the “ghost.”

Compressed air can be very dangerous, and an exploding air tank could inflict severe personal injuries, as well as damage to equipment and property. It is therefore imperative before undertaking any repairs to relieve the pressure in the storage tank. — Tom Rowse, Rowse Pneumatics

3. Mastering the “Three W’s” of Investigation

Effective troubleshooting starts with data, not tools. Before dismantling a subsystem, ask the “Three W’s” to narrow the scope of the failure:

What is or isn’t happening? Identify the specific symptom, such as a drifting actuator, slow movement, or insufficient pressure.
When did it start? A sudden failure points toward catastrophic events like a ruptured line or a broken component. A gradual decline suggests wear-related issues, such as failing seals or mounting contaminants.
Where in the cycle is it occurring? Determining if the fault happens at start-up or mid-cycle helps distinguish between a one-off mechanical jam and a recurring systemic condition.

The system operator is your most valuable diagnostic tool. They possess the most intimate familiarity with the machine’s baseline performance and can often pinpoint exactly when the “rhythm” of the machine changed.

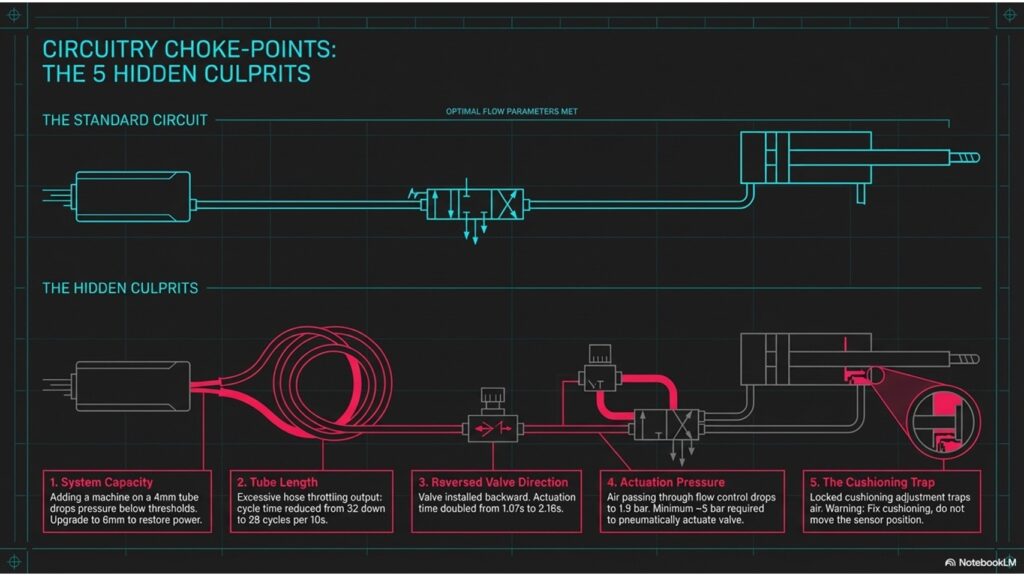

4. The Length and Width Trap: Why Tubing Size Matters

A common pitfall in pneumatic maintenance is the “like-for-like” replacement error. Technicians often replace damaged tubing with whatever is available in the crib, but the physical dimensions of air lines dictate the power and speed of the entire system.

In a critical experiment from the Festo/RS training labs, the impact of tubing diameter was demonstrated by adding a second cylinder to a circuit. A standard 4mm tube, which successfully powered one machine, caused the entire system to fault when a second machine was added. The 4mm diameter simply couldn’t handle the required volumetric flow, creating a massive pressure drop. Replacing it with a 6mm tube restored full power. Furthermore, tube length is a silent performance killer. In one test, simply increasing the length of the tubes between the valve and cylinder reduced the number of cycles from 32 down to 28 in a 10-second window—a productivity loss of over 10%. If a previous repair used a tube that was even slightly too long, you might be “fixing” a machine that was doomed by its own plumbing.

5. The Directional Mistake: Flow Control Valve Orientation

Human error is a frequent guest in pneumatic troubleshooting. One-way flow control valves are notorious for being installed backward because the components often look identical from either side.

The consequences of this mistake are not subtle. Experimental data shows that flipping a one-way flow control valve the wrong way can cause the cylinder’s advance time to jump from 1.07 seconds to 2.16 seconds. By doubling the cycle time, a single wrongly oriented valve can halve the output of a production line. Even the most seasoned industrial engineers can be tripped up by these “phantom” slowdowns, searching for complex mechanical failures when the issue is a simple directional error.

6. The “Phantom” Fault: Cushioning vs. Sensors

When a cylinder stops advancing fully, a common diagnostic error occurs regarding the cushioning adjustment. If the cushioning is turned all the way in, air becomes trapped in the cylinder cap, creating a pneumatic “lock” or intense back-pressure that physically prevents the piston from reaching its end-stroke.

The “ripple effect” of bad troubleshooting often follows: a technician, seeing the cylinder hasn’t reached its end-point, might erroneously adjust the position sensor to “find” the cylinder where it stopped. While this might get the machine moving again, it creates a new problem by moving a component out of its designed alignment. The root cause—the air trap in the cushioning—remains unaddressed, and you’ve just moved the machine further away from its baseline configuration.

7. Sound vs. Reality: Why You Can’t Trust Your Ears

One of the most dangerous habits in pneumatics is diagnosing based on the “hiss” of air. While an audible leak is a clear sign of trouble, the presence of sound does not equal the presence of functional pressure.

In a striking demonstration by Festo’s Hakan Eminçe, air was heard rushing out of a blue tube, yet it failed to actuate a 5/2 way valve. The reason? The air was passing through a pressure regulator that limited it to 1.9 bar—far below the 5 bar actuation threshold required. Conversely, a yellow line with a flow control valve restriction made no audible sound, yet it successfully pressurized to 5 bar and moved the cylinder. If air is passing through a regulator or a flow control valve, your ears cannot distinguish between “some air” and “enough air.” Only a pressure gauge can confirm reality.

“Actually, as long as we understand the principles of the products, we can recognise the components on the drawings and also on the machines as well, and know what comes in, what goes out, and we know how to check them. That really helps.” — Hakan Eminçe, Head Trainer at Festo UK

8. The Paperwork Paradox: Closing the Loop

The final, and most frequently ignored, step of troubleshooting is updating the documentation. Schematic drawings are not just static records; they are living “road maps” of the pneumatic circuit. They contain vital data on pressure test points, regulator settings, and flow rates.

If a component is changed or a setting is adjusted, the schematic must reflect the current state of the machine. Failing to update these records ensures that the next technician will be working from an obsolete map, leading back to the “trial and error” method. Proper documentation transforms a one-off repair into a long-term maintenance strategy, drastically reducing future downtime.

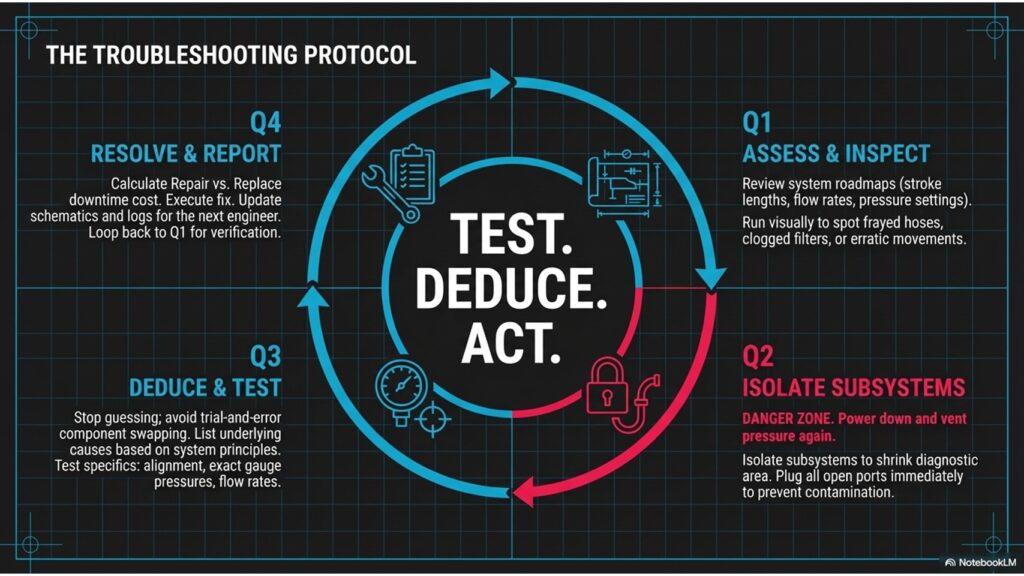

Pneumatics Troubleshooting - closing the loop

9. Conclusion: Beyond the Trial and Error

Successful pneumatic troubleshooting is a blend of logical deduction and a deep understanding of physical principles. It requires moving past the “replace-the-part” mentality and looking at the system as a whole—from the volumetric flow in the tubing to the orientation of the valves.

The next time a machine stops, will you reach for a replacement part first, or will you ask the Three W’s?

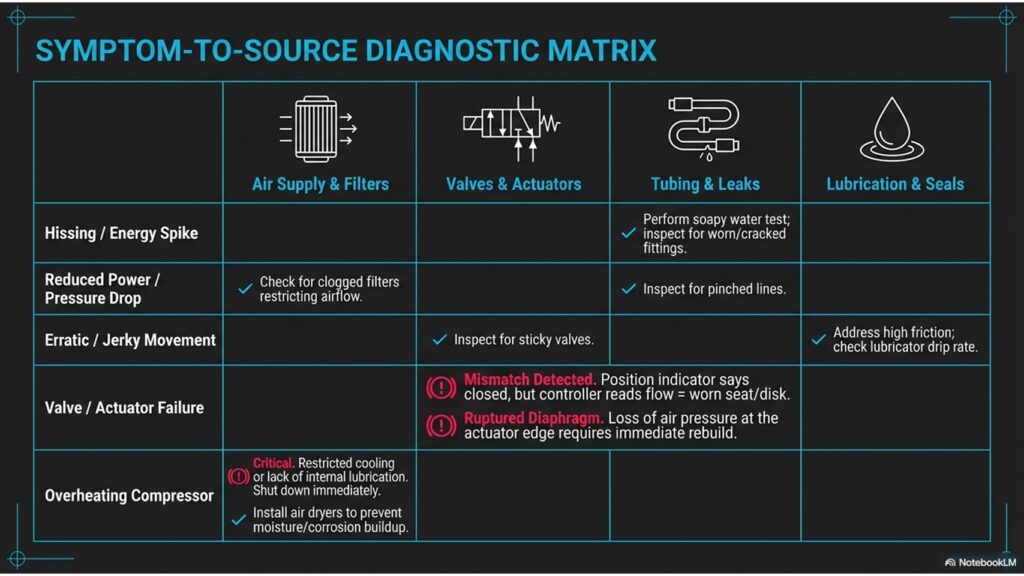

Finally, here’s a summary table of potential problems and symptoms with suggested options for troubleshooting, with example Priority Level’s in the far right column:

Problem or Symptom	Potential Root Cause	Affected Component	Diagnostic or Troubleshooting Step	Recommended Action	Priority (High/Low)
Slow or erratic cylinder movement	Malfunctioning or stuck valves; worn-out seals	Cylinders, valves, seals, and lubricator	Inspect valves, examine seals for leaks	Clean/replace valves/seals; adjust lubricator	✘
Hissing sound near connections	Air leaks at fittings, connections, or joints	Fittings, connections, and joints	Use soapy water to detect leaks	Tighten or replace loose fittings or seals	✔
Reduced power in actuators	Inadequate compressor pressure; dirty filters	Compressor, air filters, regulators	Ensure adequate compressor pressure; inspect filters	Clean/replace filters; fix air leaks; adjust compressor output	✔
Cylinder stops working (insufficient pressure)	Tube diameter is too small for required flow	Pneumatic tubing	Compare pressure at the supply vs down the line	Replace with a larger diameter tube (e.g., 6 mm)	✘
Cylinder not advancing (hear air)	Pressure is restricted	Pneumatic valve / Pressure regulator	Use a pressure gauge to check actuation pressure	Adjust the pressure regulator to ensure adequate actuation pressure	✔
Cylinder cannot advance fully	Cushioning adjustment turned all the way in	Cylinder cushioning	Check cushioning adjustment settings	Readjust the cushioning screw to allow proper travel	✘
Increased cycle time (delay)	Tube length between valve and cylinder is too long	Pneumatic tubing	Measure cycle time and compare against design	Replace with shorter tubing of the correct length	✘
Increased cylinder advance/retract time	One-way flow control valve installed in the wrong direction	One-way flow control valve	Check the orientation of the flow control valve	Reinstall the flow control valve in the correct orientation	✘
Increased wear on components	Moisture, dirt, or oil in the air lines	Air filters, actuators, valves	Check air filters for dirt; monitor moisture/particulate levels	Install an air dryer; replace air filters regularly	✘
Valve position indicator shows closed but flow continues	Valve seat and disk are worn	Control valve (seat/disk)	Compare position indicator to the controller’s flow indicator	Repair or replace the valve seat and disk	✔
Actuator cannot properly position control valve	Ruptured diaphragm or loss of air pressure	Diaphragm actuator / Air lines	Check for leaks around the diaphragm or crimps in air lines	Replace the diaphragm or repair/un-crimp the air lines	✔
Compressor shutting down unexpectedly	Restricted airflow; malfunctioning cooling fan; lack of lubrication	Compressor and cooling system	Inspect the cooling system for blockages; ensure adequate ventilation	Clean ventilation areas; lubricate moving parts; fix cooling fan	✔
