Air Rams (Compact Pneumatic Cylinders): A Practical Guide to Function, Selection and Application

(Post updated February 2026).
In this guide, ‘air ram’ refers to the more technically correct term: “compact/short-stroke pneumatic cylinders” (commonly ISO 21287), used where the installation envelope is limited – they pack considerable force into minimal space. However sometimes the term “air ram” is used more broadly to refer to a wider range of pneumatic cylinder types in general.

They form the backbone of countless industrial automation systems, providing the pushing, pulling, clamping, and lifting forces that keep production lines moving.

From food processing plants on the Sunshine Coast to mining operations in the Bowen Basin, air rams appear wherever reliable, repeatable linear actuation is required. Their prevalence stems from a combination of factors: they’re fast, clean, relatively inexpensive, and straightforward to install and maintain.

Yet selecting the right pneumatic cylinder for a given application requires more than simply picking one off the shelf. Bore size, stroke length, mounting style, operating environment, and air quality all influence whether a cylinder will perform reliably over thousands—or millions—of cycles. This guide covers how air rams work, the main types available, and the practical considerations that determine which cylinder suits a particular job.

How Pneumatic Cylinders Work

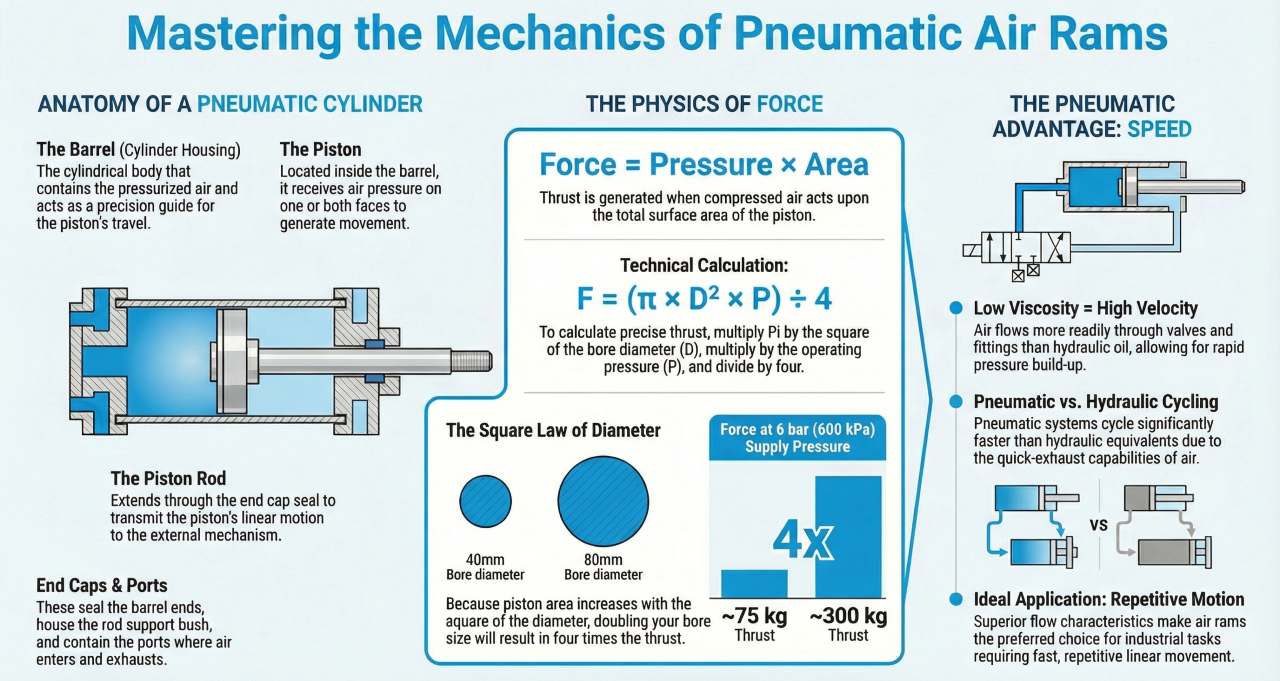

The operating principle behind every air ram is straightforward: compressed air enters a sealed cylinder and acts on a piston. The pressure exerted across the piston’s surface area generates force, which pushes the piston and its attached rod in a linear direction.

The relationship between pressure, area, and force follows a simple formula: Force = Pressure × Area. At a typical industrial supply pressure of 6 bar (600 kPa), a cylinder with a 40 mm bore produces approximately 75 kg of thrust on the extend stroke. Double the bore diameter to 80 mm, and the thrust quadruples to around 300 kg—because the piston area increases with the square of the diameter.

The force calculation follows a straightforward formula: F = (π × D² × P) ÷ 4, where D represents bore diameter and P is the operating pressure. A 40 mm bore cylinder at 6 bar supply pressure delivers approximately 75 kg of thrust on the extend stroke.

A standard pneumatic cylinder consists of four main components. The barrel is the cylindrical housing that contains the pressurised air and guides the piston’s movement. The piston sits inside the barrel and receives the air pressure on one or both faces, depending on the cylinder type. The piston rod passes through a seal at one end of the barrel and transmits the piston’s motion to whatever mechanism the cylinder is driving. End caps seal each end of the barrel and provide a bush for supporting the piston rod and typically contain the air ports through which compressed air enters and exhausts.

One reason pneumatic systems cycle faster than hydraulic equivalents is air’s low viscosity. Air flows more readily through valves, fittings, and ports than hydraulic oil does, allowing rapid pressure build-up and quick exhaust. This makes air rams well suited to applications requiring fast, repetitive motion.

What Defines an Air Ram

The term air ram typically refers to compact or short-stroke pneumatic cylinders. Their defining characteristic is a reduced body length relative to stroke, delivering similar stroke with less installed length than ISO 15552 profile cylinders. Where a standard ISO 15552 cylinder might need 200 mm of mounting length for a 50 mm stroke, a compact cylinder delivers the same travel in perhaps 80 mm.

Common bore sizes in Australian industrial applications cluster around 16 mm to 63 mm, though the full range extends from 6 mm for precision work to 125 mm for heavier duty. Strokes start at 2.5 mm and extend to 100 mm or more depending on the bore selected. Standard working pressure sits at 0.7 MPa maximum, with actual supply pressure typically between 0.5 and 0.6 MPa in practice.

Mounting flexibility sets compact cylinders apart. Multiple ISO-standard configurations exist: front and rear flanges, through-holes, foot mounts and threaded body styles. This variety allows installation in cramped machinery where standard mounting arrangements simply will not work.

The key trade-off is stroke length for installation footprint. A compact cylinder sacrifices extended travel capability in exchange for fitting where conventional cylinders cannot. Force output, however, remains comparable to standard cylinders at equivalent bore sizes because the piston area stays the same.

Force Calculations and Sizing

The theoretical force output of any pneumatic cylinder follows the relationship F = (π × D² × P) ÷ 4. Here F is force in newtons, D is bore diameter in millimetres, and P is pressure in megapascals. Convert units carefully because errors multiply quickly.

Consider a 32 mm bore cylinder at 0.6 MPa supply pressure. The calculation runs: F = (3.14159 × 32² × 0.6) ÷ 4, which gives approximately 482 N as the theoretical output. Actual delivered force drops to around 430 N after accounting for seal friction, cushioning losses and the small pressure drop through fittings.

Always apply a safety factor. Standard practice uses 1.5 times the calculated requirement for dynamic loads. This margin covers pressure fluctuations in the supply line, friction in guides and mounting fixtures, and variations in load conditions that were not anticipated during specification.

For carton pushers, product diverters and similar applications, remember that acceleration forces add to the static load. Moving 5 kg at 0.3 m/s² might seem trivial, but at higher accelerations the additional force demand grows quickly. Factor in the friction coefficient between the product and the surface it slides across.

Long pneumatic supply runs introduce pressure drop. A 6 mm tube running 10 metres with tight bends might lose 0.1 MPa or more at high flow rates. Calculate force at the pressure actually available at the cylinder, not the regulator setpoint upstream.

Benefits of Air Rams Compared to Other Actuation Methods

Compact pneumatic cylinders compete with hydraulic cylinders and electric actuators for linear motion applications. Each technology has its place, but air rams offer distinct advantages in many industrial settings.

Speed and Responsiveness

Pneumatic systems excel at rapid cycling. Air’s compressibility, often seen as a disadvantage for precise positioning, actually helps absorb shock loads at the end of stroke. Combined with fast valve response times, this allows air rams to achieve cycle rates that suit high-speed packaging, sorting, and assembly operations.

Clean Operation

Unlike hydraulic systems, pneumatic cylinders don’t require oil reservoirs, return lines, or fluid that can leak and contaminate products or create slip hazards. This makes them the default choice for food and beverage processing, pharmaceutical manufacturing, and other environments where hygiene matters. A leaking air cylinder releases only air—not a puddle of oil that shuts down a production line for cleaning.

Safety in Hazardous Environments

Compressed air systems generate no electrical sparks during normal operation, making properly specified pneumatic equipment suitable for explosive atmospheres found in mining, chemical processing, and fuel handling. While the compressor and control valves may require appropriate electrical certification, the cylinders themselves present minimal ignition risk.

Lower Installation and Maintenance Costs

A pneumatic system requires less infrastructure than hydraulics: no return lines, no reservoir, no fluid cooling, and no used-oil disposal. Air is free and abundant; a single compressor can service multiple machines across a facility. With fewer moving parts than electric actuators and no precision ball screws to wear, correctly specified air rams typically require only periodic seal replacement and proper air preparation to deliver years of service.

Durability in Harsh Conditions

Properly specified cylinders handle dust, moisture, and temperature extremes that would challenge electric actuators. Stainless steel bodies resist corrosion in washdown environments. High-temperature seals allow operation near ovens and furnaces. Rod scrapers and protective boots keep abrasive particles away from seals in dusty workshops and quarries.

Practical Limitations

No technology suits every application. Air rams cannot match electric actuators for precise, programmable positioning. They struggle to hold intermediate positions without additional valving because air’s compressibility allows gradual drift under load. And while the air itself costs nothing, running a compressor consumes energy—something worth calculating for systems with high air consumption.

Types of Air Rams and Their Applications

Pneumatic cylinders come in numerous configurations, each designed for particular operating requirements. Understanding the main types helps narrow the selection process.

Single-Acting Cylinders

A single-acting cylinder uses air pressure to move the piston in one direction only. A spring (or sometimes gravity or an external load) returns the piston to its starting position when air pressure is removed. These cylinders have just one port, simplifying both the cylinder design and the valve required to control it.

Single-acting cylinders work well for clamping, ejecting parts, or pressing—any application where force is needed in only one direction. Their simplicity means lower cost, smaller footprint, and fewer potential leak points. The trade-off is that the internal spring occupies space, reducing the available stroke length for a given cylinder size, reduced force as the air pressure is also fighting the internal spring as well as friction, and the return force depends on spring strength rather than controlled air pressure.

Double-Acting Cylinders

Double-acting cylinders use air pressure to both extend and retract the piston rod. With a port at each end, they provide controlled force in both directions, making them the standard choice for pushing and pulling loads. They account for roughly 95% of all pneumatic cylinders used in manufacturing.

ISO standards for pneumatic cylinders are based on double-acting designs, which means a wide range of bore sizes, stroke lengths, and mounting options are readily available. Without a return spring consuming internal volume, double-acting cylinders achieve longer strokes from a given body length. They also avoid spring fatigue, a consideration for high-cycle applications.

For further information on single and double-acting cylinders visit this link.

Compact (Short-Stroke) Cylinders

When space is tight, compact cylinders offer a low-profile alternative to standard rod-style designs. Their shorter overall length suits installations where traditional cylinders simply won’t fit—inside packaging machinery, within assembly fixtures, or mounted on robotic end effectors. Despite their reduced envelope, compact cylinders still generate substantial force from their bore size. They’re available in both single-acting and double-acting configurations.

Rodless Cylinders

A rodless cylinder moves a carriage along the outside of the cylinder body rather than extending a rod outward. This design provides long strokes without the space required for a rod to extend beyond the cylinder’s mounted length. Rodless cylinders suit material transfer applications, gantry systems, and situations where a protruding rod would interfere with other equipment or present contamination concerns.

Guided Cylinders

Standard cylinders allow rotation of the piston rod, which can cause problems when the rod drives tooling that must maintain orientation or when side loads act on the rod. Guided cylinders incorporate parallel guide rods or a twin-rod design that prevents rotation and absorbs side loads, protecting the main seals from uneven wear. They’re common in pressing, punching, and assembly applications where the load isn’t perfectly centred on the rod axis.

Telescopic Cylinders

Telescopic cylinders use nested stages—like a telescope—to achieve very long strokes from a short collapsed length. When fully retracted, a telescopic cylinder might be only 20–40% of its extended length, depending on the number of stages. These cylinders appear in tipping mechanisms, lifting platforms, and mobile equipment where extended reach must pack into minimal space during transport or storage.

Selecting the Right Air Ram

Choosing a pneumatic cylinder involves matching the cylinder’s capabilities to the application’s demands. Several factors warrant consideration during the selection process.

Force Requirements

Begin by calculating the force needed to move or hold the load. Add a safety margin—typically 25–50% above the calculated requirement—to account for friction in guides and seals, pressure drops in supply lines, and variations in load conditions. Remember that retract force on a double-acting cylinder is slightly less than extend force because the rod displaces some piston surface area on the rod side.

Stroke Length

Measure the required travel distance, then add allowance for any internal cushioning if the cylinder uses end-of-stroke cushions to decelerate the piston. For long strokes under compressive loads, verify that the rod diameter is adequate to prevent buckling—manufacturers publish buckling charts for this purpose.

Speed and Cycling Rate

Port size directly affects how quickly air can fill and exhaust from the cylinder. Undersized ports throttle airflow and slow the cylinder; oversized ports waste energy on unnecessarily large valves and fittings. For high-speed applications, quick-exhaust valves mounted close to the cylinder ports can significantly increase retract speed. Consider air consumption as well: rapid cycling at high speed can strain a compressed air system’s capacity.

Environmental Factors

The operating environment shapes material selection. Standard aluminium and steel cylinders suit general industrial use. Stainless steel bodies and hardware resist corrosion in food processing, coastal installations, and chemical plants. High-temperature applications demand seals rated for the expected heat exposure. Dusty or abrasive environments call for rod scrapers or bellows boots to protect seals from particle ingress.

Mounting Style

How the cylinder attaches to the machine affects both installation and operation. Fixed mounts—foot brackets, flange mounts, through-holes for tie-rod cylinders—suit applications where the cylinder body remains stationary. Pivot mounts like clevises and trunnions allow the cylinder to swing through an arc as the load moves, essential when the driven mechanism doesn’t travel in a straight line relative to the cylinder’s mounting point.

Air Quality and Maintenance

Even a well-selected cylinder will fail prematurely if supplied with contaminated air. Air quality is arguably the most overlooked factor in pneumatic system reliability.

Why Air Quality Matters

Compressed air straight from a compressor typically contains moisture, oil aerosols from the compressor’s lubrication system, and particulates from the intake environment. Moisture condenses inside cylinders as air cools, causing internal corrosion and erratic operation in cold conditions when water freezes in valves and ports. Particles accelerate seal wear. Oil carryover can damage seals formulated for dry operation or contaminate products in sensitive applications.

Air Preparation Equipment

A properly configured air preparation unit—commonly called an FRL assembly—addresses these contaminants. The filter removes particulates and water droplets; 40-micron filtration suits most general applications, while sensitive instrumentation may require 5-micron or even sub-micron filtration. The regulator maintains consistent downstream pressure regardless of supply fluctuations, ensuring predictable cylinder force. The lubricator adds a controlled mist of oil for specialised equipment requiring lubrication, though many modern cylinders use self-lubricating seals and run better on dry air.

Basic Maintenance Practices

Regular inspection catches problems before they cause unplanned downtime. Check rod seals for visible damage and air leakage—a hissing sound or bubbling when soapy water is applied indicates seal wear. Examine the rod surface for scoring, corrosion, or damage that could accelerate seal failure. Monitor cycle times; a cylinder that gradually slows often indicates seal deterioration or restricted airflow. Replace filter elements on schedule rather than waiting until they appear dirty—by the time contamination is visible, damage may already have occurred downstream.

Conclusion

Pneumatic cylinders deliver fast, clean, cost-effective linear motion across an enormous range of industrial applications. Their mechanical simplicity translates to reliability, and the widespread availability of compressed air in manufacturing facilities makes them a natural choice for automation tasks.

Selecting the right air ram involves matching cylinder type, size, and materials to the specific demands of the application—considering not just the force and stroke required, but also the operating environment, cycling rate, and mounting constraints. Equally important is providing the cylinder with clean, dry, properly regulated air; no amount of careful selection compensates for contaminated supply.
