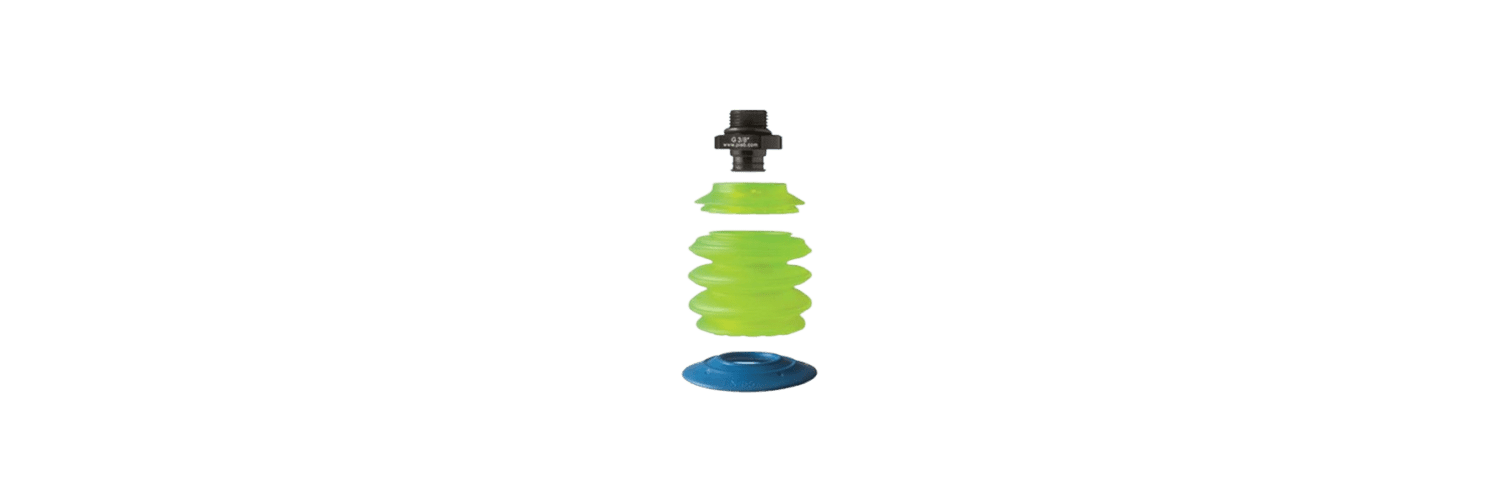

pneumatic suction cups vacuum suction cups


Suction Cups: Versatile Vacuum Solutions for Material Handling and Automation

Efficient and reliable material handling is crucial for optimising productivity and maintaining a competitive edge. At MasterMac2000, we understand the unique challenges faced by industries requiring precise and secure gripping solutions. That's why we offer a comprehensive range of high-quality suction cups specifically designed to provide versatile vacuum handling capabilities for a wide range of applications.

As a leading supplier of pneumatic accessories and automation components across Australia, MasterMac2000 is committed to delivering cutting-edge solutions that empower our clients to achieve their goals. Our suction cups are engineered to offer exceptional performance, durability, and adaptability, making them an essential tool for any industrial operation involving material handling, pick-and-place tasks, or robotic automation.

Technical Specifications and Features

MasterMac2000's suction cups are available in a variety of sizes, materials, and configurations to suit the specific requirements of different applications. Key technical specifications and features include:

Material Composition

  • Nitrile Rubber (NBR): Our standard suction cups are made from high-quality nitrile rubber, which offers excellent wear resistance, oil resistance, and a wide operating temperature range (-10°C to 90°C).
  • Silicone Rubber: For applications involving high temperatures or food-grade materials, we offer suction cups made from silicone rubber, which can withstand temperatures from -50°C to 200°C and comply with FDA regulations.
  • Polyurethane (PU): Our polyurethane suction cups provide exceptional tear resistance, abrasion resistance, and a soft, pliable gripping surface for handling delicate or textured objects.

Size Variations

Our suction cups are available in a wide range of diameters to accommodate different object sizes and lifting capacities:

  • Miniature Cups: 2 mm to 10 mm diameter for small, precise gripping tasks
  • Small Cups: 10 mm to 30 mm diameter for light-duty applications
  • Medium Cups: 30 mm to 60 mm diameter for general-purpose handling
  • Large Cups: 60 mm to 125 mm diameter for heavy-duty lifting and larger objects

Vacuum Pressure and Lifting Capacity

The lifting capacity of our suction cups depends on factors such as the cup diameter, vacuum pressure, and material properties. Some examples include:

  • 10 mm Cup at -60 kPa: Up to 1 N lifting force
  • 30 mm Cup at -60 kPa: Up to 10 N lifting force
  • 60 mm Cup at -60 kPa: Up to 40 N lifting force
  • 125 mm Cup at -60 kPa: Up to 175 N lifting force

Mounting and Configuration Options

MasterMac2000 offers various mounting and configuration options to integrate our suction cups into your existing systems or custom designs:

  • Threaded Studs: M4, M5, M6, M8, and G1/8" threaded studs for direct mounting to actuators or tooling
  • Push-in Fittings: Quick-connect fittings for easy attachment to vacuum tubing or hoses
  • Modular Systems: Expandable multi-cup systems with common manifolds for handling larger or irregularly shaped objects
  • Bellows Cups: Flexible bellows design for accommodating height variations or angled surfaces

Innovative Vacuum Gripping Solutions for Diverse Industries

MasterMac2000's suction cups are designed to provide reliable and efficient vacuum gripping solutions for a wide range of industries and applications. Some key areas where our suction cups excel include:

Packaging and Labelling

Our suction cups enable precise and consistent placement of products, labels, and packaging materials in high-speed packaging lines. The non-marking, food-grade silicone cups are ideal for handling delicate or sensitive items without leaving residue or imprints.

Electronics Manufacturing

Our miniature and small suction cups are perfect for handling electronic components, PCBs, and delicate assemblies. The soft, pliable polyurethane cups ensure secure gripping on irregular surfaces without damaging the components.

Automotive and Aerospace Assembly

Our large and heavy-duty suction cups provide the necessary lifting capacity and stability for handling sheet metal parts, glass panels, or plastic components in automotive and aerospace manufacturing. The oil-resistant nitrile rubber cups maintain a secure grip, even in the presence of lubricants or coolants.

Food and Beverage Processing

Our FDA-compliant silicone suction cups are the ideal choice for handling raw ingredients, finished products, and packaging materials in food and beverage processing plants. The smooth, non-porous surface of the cups prevents bacterial growth, and allows for easy cleaning and sterilisation.

Maximising Efficiency with Customised Vacuum Gripping Solutions

At MasterMac2000, we understand that every industrial application is unique, which is why we offer customised suction cup solutions tailored to your specific requirements. Our team of experienced engineers work closely with you to understand your challenges and develop a solution that optimises your material handling processes.

Whether you need suction cups with special features like foam grippers, vacuum sensors, or quick-change adapters, or require a custom-designed multi-cup system for handling large or complex objects, we have the expertise and capabilities to deliver a solution that meets your exact specifications.

The MasterMac2000 Advantage

When you choose MasterMac2000 for your suction cup needs, you benefit from our extensive experience, technical expertise, and commitment to customer satisfaction. We offer:

  • Comprehensive Product Range: Our extensive selection of suction cups covers various sizes, materials, and configurations to suit your specific application requirements.
  • Superior Quality: We use only the highest-quality materials and manufacturing processes to ensure that our suction cups deliver consistent performance, reliability, and long service life.
  • Customisation Capabilities: Our team of engineers can work with you to develop customised suction cup solutions that are tailored to your unique needs and specifications.
  • Technical Support: Our knowledgeable technical support staff are available to answer your questions, guide product selection, and offer assistance with installation, troubleshooting, or maintenance.
  • Fast Turnaround: We maintain a well-stocked inventory of standard suction cup components, allowing us to quickly assemble and deliver your order, therefore minimising lead times and keeping your projects on schedule.

Enhance Your Material Handling Capabilities with MasterMac2000 Suction Cups

Experience the difference that MasterMac2000's suction cups can make in your industrial material handling and automation applications. Our versatile and reliable vacuum gripping solutions seamlessly integrate with your existing pneumatic systems, robotics, and automation equipment, providing a comprehensive and efficient solution for your material handling needs.

Don't settle for less than the best when it comes to your vacuum gripping requirements. Partner with MasterMac2000 and unlock the full potential of your material handling operations with our high-quality suction cups and expert support.
